By January 2024, Viktor Kozlov was standing at his gas station outside Novosibirsk, watching diesel struggle through pumps that worked well over the summer. The temperature was minus thirty-two. Customers were already leaving. Earnings were being drained. However, the pumps and filters had nothing to do with it. The problem lies in the storage. Viktor had installed standard underground tanks without any thermal protection. So the fuel inside had become too viscous to discharge. If only this gas station owner had used a thermal store tank system, the whole disaster could have been easily prevented.
If you run a gas station in a cold climate, handle heavy fuel oil storage, or manage the operation of remote industrial fuel sites, this isn’t a luxury. It is an operational infrastructure. This guide explains just what a thermal store tank is, where it applies to stationary fuel equipment, and how one goes about selecting what one has for their own project.
What you’ll learn in this guide:
- How thermal store tanks work in fuel storage applications
- The main types of thermal storage solutions for gas stations
- Key specifications, standards, and buying criteria
- Installation, maintenance, and cost considerations
- How to match the right system to your fuel type and climate

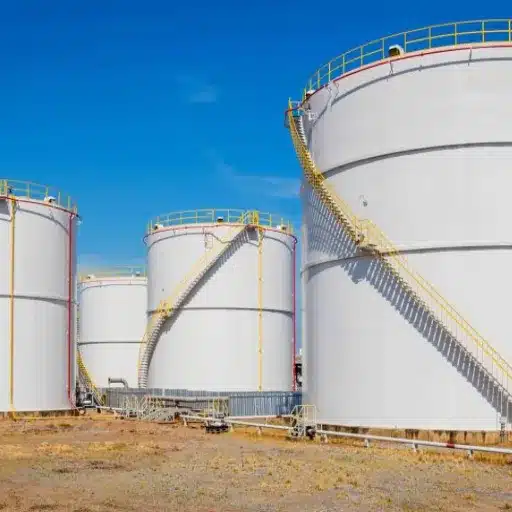

What Is a Thermal Store Tank?
A very warm stock cylinder or tank is formed with a heater or a burner to withstand the natural currents of the summer to minimize heat loss or to retain heat. In terms of the Process industries for petroleum, where real-time IT monitoring and alarming applications are used, two entities came up. Similar could define either insulated oil storage containers used to store diesel, fuel oil, or biodiesel, which add up to pumpable temperatures. The other would define thermal energy storage tanks, where you have an enormous amount of heat, especially in buildings, wash bays, or even some auxiliary heating systems.
Insulating elements might include a system of heat exchange for regulation of thermal swinging inside the storage tank, while insulation layers may also serve the thermal store tanks. This similarity between thermal stores and standard tanks relates to the layers of insulation sealing within the thermal tank. For fuel operators in the northern climate, in very high altitudes of evolving climate, this temperature stability translates directly to uptime, longevity of equipment, and keeping quality fuel preserved.
To process cogeneration cycle fluids with varying qualities and temperatures (thermal-head, intermediate, and tail), the system uses heat storage in sensible fluid rather than phase-change materials or molten salts. In this modernized adaptation, conventionality as related to fossil, optimized efficiency lies in keeping respective fuel substances viscosity at a maximum when not in use. Nearly 56% efficiency will be raised all the way through to 84% when these new thermal storage designs are directed to better insulation, diffuser geometry, and flow control.

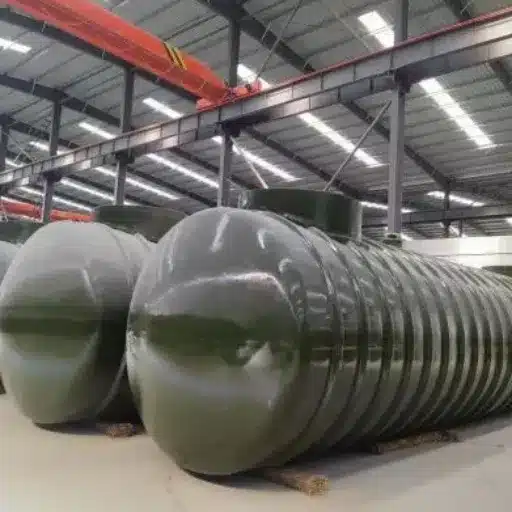

Why Gas Stations Need Thermal Storage Solutions
The same cannot happen with fuel at twenty degrees Celsius as it does at minus twenty degrees Celsius. Diesel turns to gel. Thickens heavy fuel oil. Separates biodiesel. Even gasoline faces vapor pressure problems with extreme temperatures. Laying stored fuel outside the range of specified temperatures makes work even harder for pumps, filters get clogged quicker, and dispensers deliver wrong quantities.
Cold-Weather Operational Reliability
Maria Santos learned this lesson the hard way when she took over a rural station outside Fairbanks, Alaska. The previous owner had used bare steel tanks buried just below frost line. Every November, Maria faced a three-week battle with gelled diesel that clogged filters and forced her to call emergency heating contractors. After switching to an insulated double-wall underground tank with integrated electric heat-trace, her winter problems disappeared. Fuel stayed fluid. Filters lasted longer. Most importantly, her customers stopped driving past her station to find one that worked.
Cold climate stations aren’t the only ones affected. High-altitude locations, coastal regions with wind chill, and any facility storing heavy fuel oil or thermal oil require temperature management to maintain consistent flow rates and combustion quality.
Regulatory and Safety Considerations
Temperature-stabilized storage also supports compliance. Many jurisdictions require stored fuels to meet specific quality standards at the point of dispensing. When fuel gels or separates, it can violate these standards. Additionally, explosion-proof ratings for heating equipment in hazardous zones must align with ATEX, UL, or NFPA requirements. Installing a certified thermal store tank system demonstrates due diligence on both product quality and site safety.
Types of Thermal Store Tanks for Fuel Stations
Not every thermal storage solution serves the same purpose. The right choice depends on your fuel type, site conditions, mobility requirements, and whether you’re managing fuel temperature or station heating loads.
Insulated Double-Wall Underground Tanks
The most common thermal store tank for fixed gas stations is an insulated SF double-layer tank or a similar double-wall design. These systems combine a carbon steel inner vessel with a fiberglass reinforced plastic outer shell, plus an insulation layer in the interstitial space or applied to the outer surface.
Specifications for insulated underground fuel tanks typically include:
- Temperature range: -20°C to 200°C depending on insulation and heating integration
- Service life:Â 30 to 50 years
- Monitoring:Â Continuous interstitial leak detection
- Compliance:Â SH/T 3178-2015, UL, ATEX, CE/PED
Because underground tanks benefit from natural soil insulation, they often require less active heating than aboveground alternatives. As Wattco notes, soil acts as a thermal buffer that reduces heat loss and can lower energy costs for temperature maintenance.
Skid-Mounted Thermal Fuel Stations
For remote construction sites, mining operations, or temporary fuel demands, skid-mounted thermal fuel stations comprise an insulated storage tank with heating skid, pump, and control panel, all placed on a single frame. These systems are plug-and-play. They come prefabricated with pre-piping and pre-wiring for installer convenience and ease of connection to power and fuel supply lines.
Skid-mounted stations are especially valuable when:
- You need rapid deployment in harsh climates
- Aboveground storage is required due to soil conditions
- Mobility between job sites is necessary
- Heating oil or heavy fuel oil must be maintained at a temperature before dispensing
Capacities typically range from 5 cubic meters to 50 cubic meters. The integrated design simplifies compliance because the heating, pumping, and containment systems are engineered as a unified package.
Thermal Buffer Tanks for Station Auxiliary Heating
Some fuel stations utilize small thermal storage tanks to save heat for buildings, vehicle wash bays, or antifreeze systems. The heat is collected and stored in the system’s heat bank, which is a tank filled with water.
This system collects waste heat from generator exhaust, solar thermal panels, or boiler systems. This facility stores waste heat in tanks until they are needed later. And electric heat pumps in domestic water heaters afford space heating. One of the benefits, obviously, is storing energy in the form of heat.

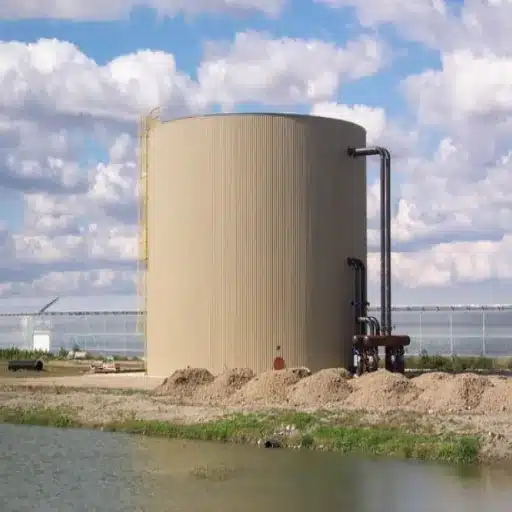

Key Specifications and Buying Criteria
Specifying a thermal store tank requires more than picking a capacity. You need to match the thermal performance, heating method, materials, and controls to your specific operational environment.
Capacity and Heat Load Sizing
Start with your fuel throughput and climate data. A tank that turns over rapidly won’t need as much thermal support as one that stores fuel for weeks. Calculate the worst-case heat loss scenario using:
- Tank surface area
- Insulation R-value or thermal conductivity
- Lowest expected ambient temperature
- Target fuel temperature
For active heating systems, size the heater capacity to overcome this heat loss and provide a reasonable warm-up time if the fuel has cooled. Industrial heater skids typically specify output in kilowatts or BTU per hour.
Material Selection
The inside of heat storage tanks in fuel stations is made of any one of the following materials:
- Q235B carbon steel: This is the standard for SF double-walled tanks, which are known for their cost-effectiveness and strength and can also hold frequently used fuels such as gasoline, diesel, and many fuel oils.
- SS304 or SS316L stainless steel: It is used for very corrosive fuels, bioethanol mixtures, or when high cleanability requires more enhanced qualities.
- Fiberglass reinforced plastic: For tanks of the FF type, corrosion resistance is outstanding, and the lower thermal conductivity (and therefore the heat transfer) can have a negative effect on response times.
The outer layer of insulation can be made of polyurethane foam, mineral wool, or aerogels, depending on the temperature conditions and the budget.
Heating Method Selection
Four primary heating approaches exist for fuel storage tanks:
| Method | How It Works | Best For |
|---|---|---|
| Electric heat-trace | Self-regulating cable attached to the tank wall and piping | Freeze protection, small to medium tanks, simple installation |
| Hot-oil circulation | Heated thermal fluid circulated through internal coils | Large tanks, high temperature requirements, and existing boiler systems |
| Steam coils | Steam passed through internal heating coils | Industrial sites with existing steam infrastructure |
| Immersion heaters | Electric heating elements inside the tank or circulation loop | Day tanks, precise temperature control, and smaller volumes |
Each method has different capital costs, operating costs, and maintenance requirements. Electric heat-trace is the simplest but may be expensive to operate on a large scale. Hot-oil systems are efficient for high temperatures but require additional equipment.
Safety and Compliance Standards
All thermal store tanks to be installed in a fuel station have to be designed according to hazardous area and pressurized tank codes as follows:
- UL 58 / UL 1746: Underground steel tanks and underground insulated double wall tanks
- ATEX / IECEx: Explosion-proof-rated electrical heating equipment for zones 1 or zone 2 hazardous areas
- CE/PED: European tanks and heating systems should be designed according to European pressure vessel directives, etc.
- SH/T 3178-2015: A SF type of buried double-walled tank standard in China
- NFPA 30 / NFPA 37: It shows the code for flammable and combustible liquids and generator installation standards
While checking, ensure both the tank vessel and the heating components hold the right certifications to code in your area of jurisdiction.
Controls and Monitoring
Modern thermal store tank systems benefit from intelligent controls. Look for:
- PID or thyristor temperature control for stable setpoints without thermal cycling
- High-limit safety thermostats to prevent overheating and fuel degradation
- Remote monitoring capability to receive alerts for temperature excursions or equipment faults
- Redundant pumps in circulation systems, so a single failure doesn’t leave the tank unheated

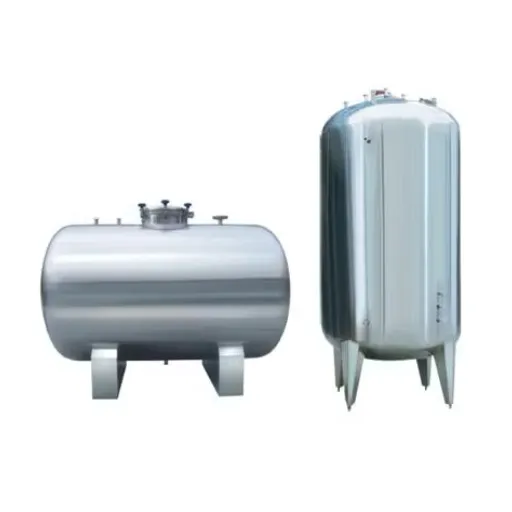

Advantages of Thermal Store Tanks for Fuel Stations
Installing a thermal store tank system delivers measurable operational and financial benefits beyond simply keeping fuel warm.
Reduced Downtime and Maintenance Costs
Situations like this include that by remaining in range, the pumps don’t work hard any longer; get settled for nothing premature clogging of filters; dispensers remain calibrated. Maria said she had dropped the frequency with which she replaced her filters by more than half since she had the thermal storage. Her annual spend on maintenance was now about eighteen percent less.
Extended Equipment Service Life
When there is temperature cycling, all of the fatigue-related issues that come with loading and unloading the tank affect the materials, checking, and interior coating. Further, maintaining suitable temperatures means that freeze-thaw or condensation problems are present in the non-protected underground tanks.
Energy Efficiency and Operational Flexibility
The principle of groundwater level monitoring is to establish quality insulation underground tanks to stabilize the earth’s temperature, thus reducing the demand for active heating. A buffer thermal tank considers some spare heat in stations to balance the total losses of heat to the environment, thereby ensuring overall site energy efficiency.
Regulatory Risk Mitigation
Fuel quality failure due to storage-related temperature can bring to light the additional cost of storing fuel. Customers may dismiss its effectiveness based on bills received. However, the use of a thermally well-specified storage tank, in conjunction with proper security measures, proves that the operator has performed due diligence in maintaining fuel in specification from storage up through dispensing.
Common Challenges and How to Overcome Them
Innovation does come with thermal storage tank systems, which provide them with a load of complications that need to be managed well.
Higher Upfront Capital Cost
This is due to their added cost, primarily insulated tanks, heating skids, and explosion-proof electrical systems, in comparison with bare tanks. That said, this gap can become narrower when preventive maintenance and service life are considered. Normally, the payback period in such installations in cold climates ranges from three to five years.
System Complexity in Skid-Mounted Units
When it comes to operation and troubleshooting, a multiple systems skid will probably be more involved when compared to components that are simple from stand-alone operation. The best situation is for acquiring turnkey packages from the best manufacturers who offer clear documentation, wiring diagrams, and so on to the consumer–as well as after-sales technical support. Pre-shipping factory acceptance testing may also be done to eliminate all commissioning problems.
Maintenance Access for Heating Coils and Sensors
This design must contain the heated coils within the inside and the possible manhole and lifting lugs as physical evidence that it meets the necessary availability requirements for servicing. Perhaps the designer might be challenged to store the hydraulic coil inside and determine ways to adjust manually, which could be ridiculous and impossible. It would be an ideal solution to the challenge to be aware of these new design methods. If needed, the model could also render it external with plate heat exchangers, which is an easier design to clean, even though there is no hard rule that a coil is mandatory.
Real-World Example: Mining Operation in Chile
A Chilean copper mining company set up a diesel storage facility for a remote processing plant in the Atacama Desert in 2023. The nights got extremely cold. Often below 0°C, it was not uncommon, while the daytime temperature usually ranged around 20-25°C. Thus, the main tank required heating compulsorily, and the running generator was disgusting as it kept running the main diesel supply warm. Because low temperature losses due to electricity have dropped by more than 60%, to achieve similar results, Mountain Fuel Management installed insulated double-wall tanks, minimized with electric heat-trace for nighttime, and reduced the auxiliary generator run time by four hours per day, rendering this as considerable fuel savings over the project lifecycle.

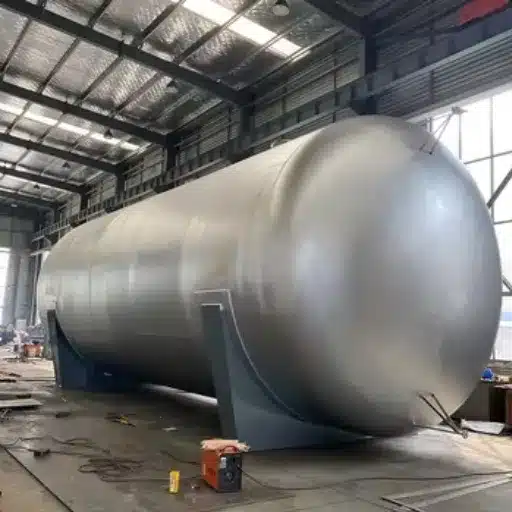

Installation and Maintenance Best Practices
Proper installation usually determines the success of a thermal store tank for the period it shall serve.
Pre-Installation Site Assessment
Evaluate the following elements before the installation of the equipment:
- Soil thermal conductivity and groundwater levels
- Ambient temperature extremes and seasonal variations
- Electrical supply capacity for heating systems
- Area classification for hazardous areas for heater placement
- The access routes for the delivery of skid-mounted systems by crane or forklift
Insulation Integrity During Installation
The proper insulation and coatings are required to avoid damage to the insulation. Further care would be needed during the backfill to make sure that there is no puncture to the insulation and body. Use clean and granular backfill, no rock over 50mm. For aboveground or skid-mounted products, joints and penetrations are to be completely sealed with weatherproof claddings.
Piping and Penetration Sealing
The losses on the tank walls are almost negligible when compared to the probable losses due to hot water demand through circulation lines. Hence, all the supply and return should pass through the wall or the concrete floor and insulate the pipe. There is also a need for using insulated pipe supports and expansion joints, which would efficiently remove the thermal bridges.
Scheduled Maintenance Protocol
Monthly:
- Authenticate the setpoint temperature of the temperature controller and the ALARM functionality
- Check for corrosion or loose electrical connections of the heater
- Verify for moisture or internal damage of the insulation cladding
- Checking and determining the upset probability of stale fuel in tanks
Annually:
- Calibrate the high limit thermostat and sensor of the temperature.
- Ensure proper function of the safety shut-off and interstitial monitor
- If scaling or fouling occurs, clean or replace the heating element bunches
- Kindly verify the coating breakdown outside the tanks, where accessible
Every three to five years:
- Thermal Inspection Audit for the satisfaction of the effectiveness of insulation
- The assessment of the performance of the heater systems, including upgrading cases for recent technologies
- Review of the certificates concerning hazardous duties at those intervals during this duration.
Conclusion
Thermal store tank innovation occupies an area inclusive of fuel quality control, equipment safety, and dependable functioning. Be it insulation SF double bottomed tanks for a petrol station in a winter zone, skid type thermal fuel stations in some industrial back of beyond, or thermal buffers for an auxiliary heating of the station. Efficient selection of the necessary equipment depends on the thermal technologies utilized for refuelling, considering the environment and associated legal stipulations.
Key takeaways:
- Thermal store tanks prevent fuel gelling, separation, and viscosity problems that cause downtime
- Underground insulated tanks benefit from natural soil thermal buffering while providing decades of service
- Skid-mounted thermal stations offer rapid deployment for remote or temporary fueling operations
- Proper sizing, heating method selection, and control specification are critical to system performance
- Certified equipment and professional installation ensure compliance with UL, ATEX, CE/PED, and NFPA standards
