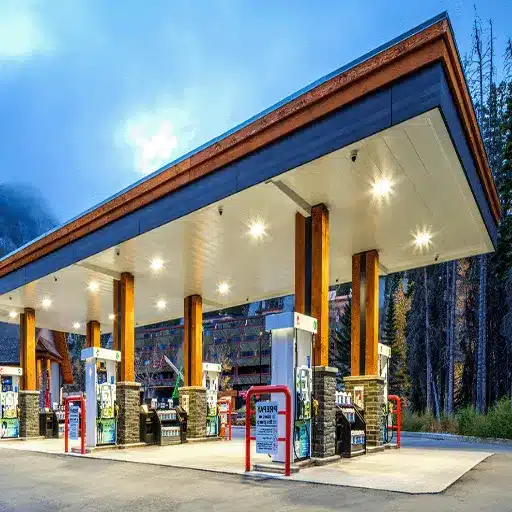

What Is a Gas Station Canopy?
The service branch canopy falls under a canopy that covers the fuel areas of the service station. Thus, the variations in temperature and weather are avoided, keeping the motorists in a comfortable and secure atmosphere. Allowing a 20 to 60 meter range, which can bear an effect of 180 km/h, these shelters are contact windload type with fire suppression and electrical systems to create a perfect fuelling environment.
Purpose and Function
One vital reason for having a fuel station canopy is not just for basic shelter purposes alone. The weather protection makes customers enjoy themselves during the rain or snow or under scorching sun; this encourages them to transact as opposed to moving to the businesses of the competitors. There is also equipment protection that will ensure a very low chance of environmental impacts causing untimely failures of very expensive dispensers, as well as payment terminals and monitoring equipment.
Safety through enhanced lighting in the matter of installation eliminates dark areas and doubles up with camera surveillance. Detection starts from the direction of a fire with canopy-mounted fire suppression systems responding the least the moment a fire starts with the fire suppression systems. For businesses, the visibility of their brand counts most due to the performance it is known to bring in cash. Some premises are solely constructed to attract visiting drivers from more than three hundred meters away. Mostly they do so during the night, either rain or shine at that time, most of the time, shadows, more than anything else, determine what will cause the fuel to be in that ground.
Key Components
Modern station gas like canopy systems efficiently provide enhanced power. Structurally, the canopy is metal, forming the backbone, while space frame grids or welded truss configurations are available. They even serve to distribute loads. Nodes connect hollow steel tubes through bolted ball joints, which leads to advantageous strength-to-weight ratios in space frame canopies.
The roof system protects the structure with metal panels, composite materials, membranes, sheds water, and resists UV damage. Column supports carry loads of the canopy to the foundation footings and are typically constructed in reinforced circular tubes filled with concrete. Among others, LED lights are added, as are runs for electrical conduit, fascia panels of brand messaging, as well as mounting points for security cameras and fire suppression equipment.

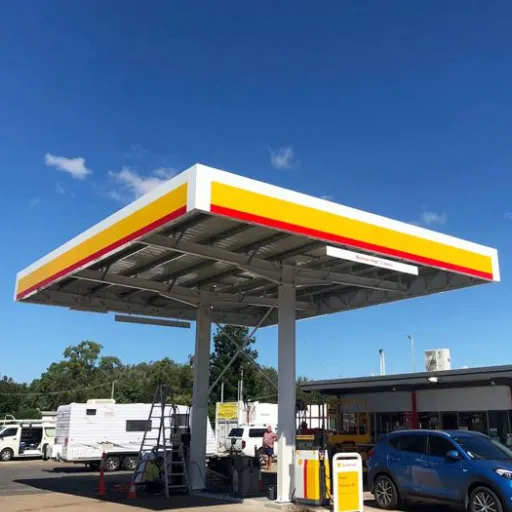

Types of Gas Station Canopy Designs
Choosing a perfect canopy affects everything from total construction prices to future maintenance requirements. When you know all of these things, that’s when you understand what makes a space frame different from a truss or maybe a cantilever.
Space Frame Canopies (Premium)
Space frame canopies are the most high-tech structural variety to use for fuel station applications. They are made with a three-dimensional framework that is composed of hollow steel tubes connected with bolt-ball nodes, resulting in bond points and geometrical shapes, and which distributes the load throughout the framework rather than focusing it in locations.
The advantages of a space frame construction are significant, where spacings of 20m to 60m span do not need interior columns and allow for larger fueling areas, smoother traffic flow, and crash barriers. Curved geometrics with 3D profiles and architectural freedom for designers increase brand recognition. With cast cells welded full and seismic and non-seismic applications, the wind resistance will exceed the conventional designs.
Normally, the lifespan of services goes above 30 years with minimum maintenance simply because of the redundancy built into the structure, since damage to one of the members loaded redistributes itself to the adjacent components. In addition, all steel constituents are hot-dip galvanized, assuring high corrosion resistance even in coastal as well as industrial locations.
Steel Truss Canopies (Standard)
Aside from bolted frames, the steel truss canopies may also have welded members made from sections of I-beams, H-beams, and angle sections that are usually arranged in triangular patterns exhibiting the needs of structural efficiency. All these are established designs popular for fueling environments from long ago; of course, one of the most effective ways to build a medium-sized unit in the fuel kiosk.
A very consistently strong narrative supporting reduced costs of steel truss canopies is a notable feature. Typically, output work requires somewhat less precision than frame components, and much less technical training for the erection crew is needed. That is exactly what those models for related projects on or about a 20 m span to 40 m span output sensations feature.
The simple construction process allows fast assembly completion; therefore, an average of 6 to 10 weeks is required. Maintenance is Predictive with easy inspection locations and readily available replacement elements. Though less architecturally flexible relative to a space frame, a truss canopy usually has very good performance at perhaps a little less.
Cantilever Canopies
Unique structural design situated on a single column row supporting the entire facility, and doing away with columns on one side of the fueling area creates uninterrupted throughput for sites equipped with spatial constraints or specific traffic flow requirements.
Rather, they employ moment-resistant connections and counterweighted foundations to resist overturning forces peculiar to single-sided support. The cleaner aesthetic appeals to brands focusing on contemporary design, while the open space even enhances customer perception on the safety and accessibility fronts.
Cantilever design has added complexity as precision is demanded in foundation placement and column alignment. Costs are usually 15%-25% higher than comparable two- sided truss designs. This premium is possible to justify if suburban or high-fueling-area-flexible stations are needed for specific urban sites.
Design Comparison Table
| Feature | Space Frame | Steel Truss | Cantilever |
|---|---|---|---|
| Typical Span | 20-60 meters | 20-40 meters | 15-30 meters |
| Cost Range | 50K−50K−300K | 35K−35K−80K | 60K−60K−150K |
| Installation Time | 2-4 weeks (prefab) | 6-12 weeks | 8-14 weeks |
| Wind Resistance | Excellent (180+ km/h) | Good (120-150 km/h) | Good (requires engineering) |
| Maintenance | Minimal | Moderate | Moderate |
| Design Flexibility | High (curved forms) | Limited (rectangular) | Moderate |
| Service Life | 30+ years | 20-30 years | 20-25 years |

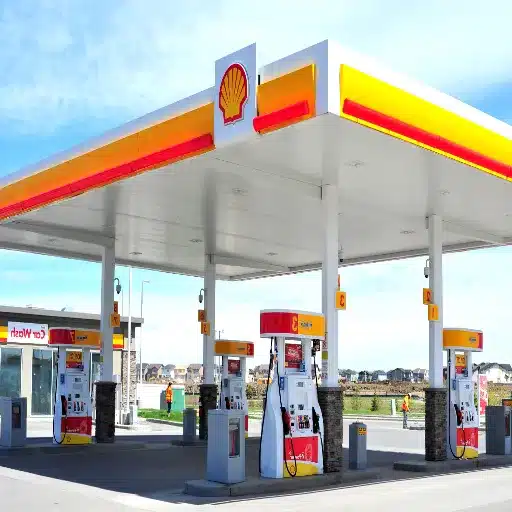

Structural Specifications and Engineering
Proper design is what it takes to know your canopy is up to environmental loads and lies within the range of the safety codes and the statutes that you should follow. By knowing all the technical specifications, you can take a good look at the proposals you have in hand and make sure to compare them with the desired projects.
Wind Load Requirements
The most crucial environmental load factor for canopy design is wind loading. For the most part, the design wind speeds vary from 120km/h to about 180 km/h, according to the location, for a typical wind-oriented design criteria based on ASCE 7 standards. Coastal sites, high-altitude localization, and eyewitness accounts of violent weather phenomena require much faster design wind speeds.
One of the main reasons why space frame canopies are excellent for places of high winds is the way their three-dimensional grid structure distributes wind forces over the entire framework. The traditional schemes of the trusses, on the other hand, are going to bear bracing and connection strength to sustain the uplift and lateral forces. Structural calculations are made for the long-term winds and gust factor, allowing the calculations to give peaks of the loads momentarily.
Additional criteria could be mandated by local building codes beyond the ASCE 7, especially when it comes to hurricane-prone regions, which could see even some of such mandates in certain jurisdictions up to 200 km/h for the design wind speed for commercial structures. Design of any elements, such as roofs or lateral braces, will not proceed to the final stages until the last clearance has been given by all engineering departments confirming the applicability of all the standards.
Snow Load Standards
Subgrade frost heave provides significant weight effects for the design of roads. The ASCE 7 Chapter 7 standard, provided by the local agency or department responsible for municipal services, provides the snow load calculation for most of the North American data and the ground snow information. It ranges from 0.50 kN/m² to 1.50 kN/m² for most North American locations. Mountain regions and northern latitudes are heavy snow adjudication regions, some of them requiring snow loads exceeding 3.0 kN/m².
Drift loading on canopies should be carefully watched against wind accumulation due to the staggering of snow against columns that creates localized load concentrations that far exceed the uniform distribution. Roof geometry as well has a role to play in snow behavior; as a result, flat or low-slope canopies load more snow between snow hits compared to the pitched design, which encourages more snow removal.
The snow borne in space frame structures can distribute the snow load over several load paths because it follows redundant paths; this means the snow weight is distributed at many points on the frame rather than the force at a target point. Regular inspections following heavy snow events help ensure that no further issues are created by the accumulation.
Material Specifications
The materials determine longevity and safety performance with reference to the canopy’s quality. Q345B structural steel is considered to be the primary member’s standard because it has excellent weldability plus a yield strength of 345 MPa. The hot-dip process deposits a coating of zinc measuring a minimum of 85 microns, ensuring about 50 years of corrosion protection under normal conditions.
The proposed fasteners of grade 10.9S are also being used for high-strength bolting, creating a connection capable of bearing heavily dynamic loads. The anchor bolts are embedded into the footings of concrete as per ASTM A 307 to attach the columns and resist any uplift or lateral forces.
Some products used in the roofing process include -aluminum-zinc coated steel panels, standing seam metal roofing, or composite membrane systems. Roofing material selection is climate- and aesthetics-driven, with consideration of different methodologies of incorporating light and signage with such systems.
Seismic and Fire Resistance
Such structures are intended for those locations with earthquakes in mind. Chinese GB standards or other comparable international criteria require that the design of a structure be built according to seismic design requirements of eight degrees. Designed to resist earthquakes, space frame canopies have multiple seismic load paths due to the inherent ductility of the system.
Structural elements of the fire performance requirement would adopt the use of noncombustible Class A materials. Fire ratings for steel structures can reach 2.5 hours by accurate application of intumescent paint or fire-protection materials. Also included are the pipes of a firefighting suppression system that are used for the sprinkler parts, extending to include the detectors and wattage for the lighting fixtures.

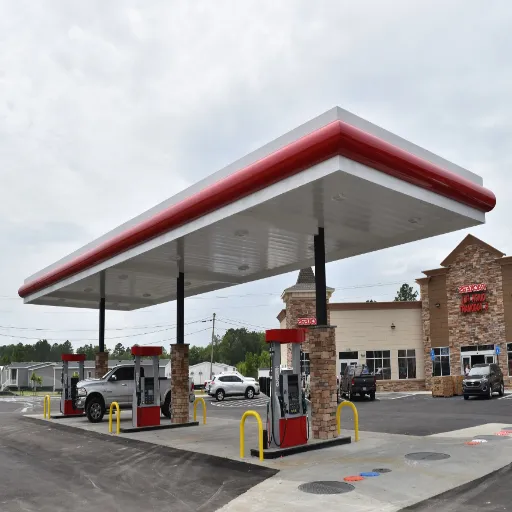

Cost Analysis and ROI
For a complete understanding of the cost of creating a gas station canopy, it is essential to consider the foundation elements of the canopy, installation costs, and long-term business benefits available. It depends on the design type, size, and specification of the canopy.
Price Ranges by Type
Basic canopy: These range between $10,000 to $25,000, best suited for smaller stations or maybe just the operations that are temporary. A steel truss design with the spans minimized, and a standard can be installed and substituted.
Mid-range Canopy: Mostly put in the range from $35,000 to $80,000, it is used by independent stations or regional chains. Steel truss/implied space frame design for the stations covers normal fueling spaces, but is installed with good materials — with lighting attached, overall ratings for wind load and design wind speed were specified, rather than using local standard weather design criteria.
High-performance canopies: These range between $50,000 to $300,000 for well-established brand sites, high-motion freeway exits, and landmark projects usually feature large-space architecture forms, custom radii, high wind ratings, and intensive lighting integration.
Component Cost Breakdown
This usually costs 18,000 to about 45,000 for the structure alone, contingent on how many meters it covers, the complexity of the design, and the amount of materials. Space frame structures generally are quite expensive because precision in manufacturing and the special connection hardware are both mandatory.
Foundations typically run 8,000 on average to 10,000 building the footing itself, including the cost of excavation, rebar placement, concrete cost, and anchor bolts. Because of bad soil conditions, some site conditions may warrant deep foundations or soil improvements, which add high costs.
Depending on canopy complexity, site access, and local labor rates, installation labor costs range from as low as $5,000 to as high as 12,000 dollars. Field labor requirements using prefabricated systems cost less when compared to traditional stick-framed construction. Design and engineering would add some 2,000 to 5,000 dollars for the structural calculations, permit drawings, and documentation for compliance.
Cost Factors
Material quantities and structural requirements are really affected by span and size. Doubling the span more than doubles the cost due to exponential increases in beam sizing and connection strength requirements. Wind and snow load specifications will affect the material selection, particularly in terms of extreme weather ratings that might require heavier steel sections and more robust connections.
The height and clearance affect the dimension of columns and their underpinning system requirement, while the range of tensile poor canopies, like 16 ft., clears the truck to go up with bigger expenses against the 12-14ft. standard dimension designs. It goes without saying that lighting and signs can significantly contribute to accumulating savings. Electrical conduits, fixture costs, and installations are also affected because of deeper penetration because of the complexity.
ROI Through Increased Sales
Using canopies to protect a business often goes past mere weather protection. Drive customers through a visible change in brands due to the modern canopies, with LEDs built inside, and voilà! Attractive and well-lit stations pulling drivers off competing sites, particularly after their evening stops, may well lead them to both of the above-mentioned benefits.
Customers then do their errands rather than retreat to the shelter of their vehicles or go off somewhere while sulking. And it is an added value for the property with the help of quality canopy installation that modern canopyed stations command more significant resale values and shine with their shine from leading brands in possible franchise opportunities.
Ready to get specific pricing for your project? Contact our engineering team for a customized quote based on your site requirements and specifications.

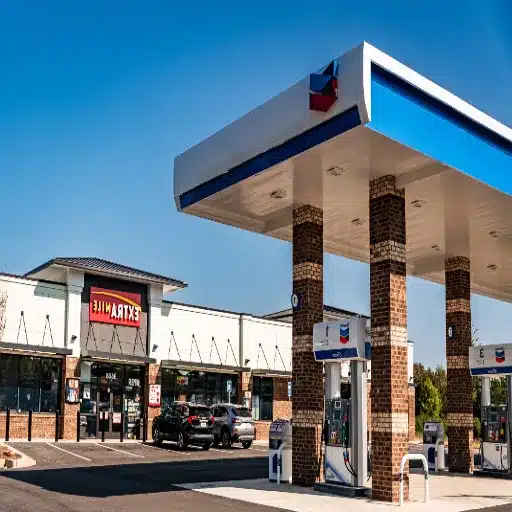

Installation Process and Timeline
With all things already in their proper place at the site and all the permissions already received, foundation construction of the project began. The best time to start on the foundation construction is right from the groundbreaking. Normally, the installation activities go on for about ten to twelve weeks.
Pre-Installation Phase
Site assessment with soil tests also begins the foundation evaluation work and identifies critical design factors for foundations, such as underground services, and soil samples are often taken from the base. Foundation proposals from the geotechnical report are coupled with foundation designs; in areas where there is often a lot of poor soil, it might be necessary to install deep piles or other soil conditioning methods, all of which will usually add cost and time to the installation.
It will consume like 3 to 4 weeks for standard designs and many more weeks, maybe depending on design typology, custom or complex. Due to the usage of the load factor and calculations, the amount of the steel sections, foundation bolts, and other structural members present has been determined, and a specification of the detailed calculations is provided with the intent of facilitating the task.
Foundation Construction
Excavation and foundation work could take one or two weeks, depending on the soil conditions and the type of foundation. For example, spread footings are best for soil stability, while poor conditions may call for drilled piers or pile foundations, which will prolong the job.
After curing of the concrete, anchor bolt installation could begin. ASTM A 307 bolts shall be installed, matching exactly the column base plate patterns as required. Normally, concrete curing requires between 2 and 3 weeks to design strength before structural loads can be applied. Premature loading may result in a cracked foundation or anchor bolt failure, weakening the structural integrity of the component.
Canopy Erection
Steel delivery and site establishment typically last for 1 to 3 days, with components handed over for smooth assembly sequencing. Crane location and safety zone preparation will come before the actual erection work in case of necessity. The first step in constructing the installation is to fix the columns vertically, and after the installation is placed, temporarily brace the vertical members properly before they are permanently fixed in place.
Truss frames are typically assembled according to the method framed design, whereas space framed canopies require the installation of member-by-member bolt-ball click. Roof installs with cored insulation and membrane systems, then edge detail and drainage trim follow. Electrical and lighting integration mostly installs its fixtures, finishes with conduit, and wires everything in the last phase.
Total Timeline
Typically, standard truss canopies finish within 6-12 weeks of groundbreaking, with a supposed 2-4 weeks cut for the part of the prefabricated space frame system as the structure piece. Weather delays, difficulties in getting permits, and the conditions of the site can push the schedule farther than planned. Planning against unforeseeable instances keeps the project on track.

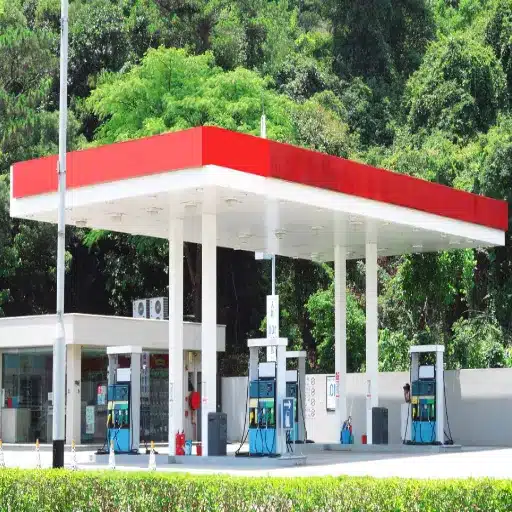

Benefits of Quality Canopy Construction
Professionally engineered gas-station canopies make one- off investments that stretch through safety, operations, and business performance dimensions. Understanding the benefits justifies investment and quality prioritization in specification decisions.
Weather Protection
There is so much in common awareness of the effect of customer comfort on the time a customer spends at the pump; protected customers happened to be the most maple-type people to go in for the convenience store markets. Dispensers, payment terminals, and monitoring systems all do better when kept dry and not subject to temperature changes through the long-lasting treatment that these canopies give them. Operational continuity during severe weather keeps your place earning money when your competition else would close shop.
Safety and Security
The LED bulbs would get rid of dark places that render them safety threats and criminal opportunities. Today’s canopy lighting systems produce 20-30 foot-candles for fantastic uniformity, best taking parts of shadowed visibility from security cameras and confidence in people. Someone in possession of a concealed walking surface could put water on it during precipitation, making it a hazard against slipping.
Integration of a fire suppression system in the canopy is provided with a rapid response capability, as both top sprinkler systems and a detector net are directly attached to the canopy structure for complete coverage against hazards. Also, the emergency lighting system can ensure the safe evacuation of employees while the work is maintained during power outages.
Business Value
It raises the visibility of the brand to passers-by around the clock and is visible, as there is lighting under a good canopy. The station that presents a contemporary professional image will show the client that the business entity allocates values to those entities that it associates with and that it considers the value and safety of placement as important. So it becomes an asset that grows over time through appreciation, and not an obligation to replace the asset as canopies get even better.
Structural Advantages
A life of service lasting for 20 to 50 years depicts quality witnesses that quality materials and construction of the canopy are put in place. Low demand for maintenance activities causes hardly any interruptions in its operation and ongoing expenses. Because the prefabrication design would help minimize the time and manpower to build on-site construction, it certainly helps the factory rather than the construction processes.

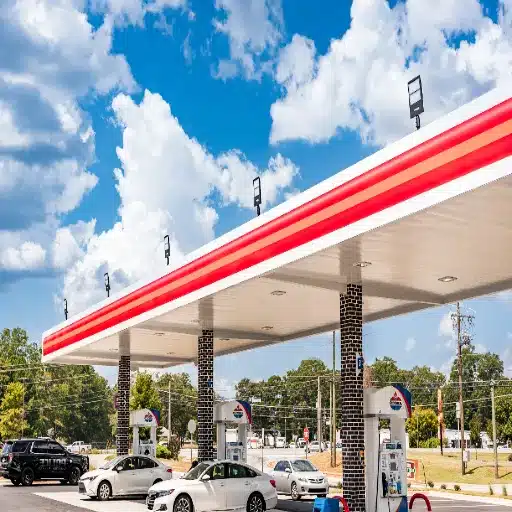

Maintenance and Longevity
Proper maintenance helps prolong the service life of the canopy and retains the visual appeal and functionality. If early maintenance is enforced, minor issues develop, which helps to prevent expensive repairs.
Routine Maintenance
Annual inspections should always detect prospective problems before they occur and after they have caused potential hazards or structural damage. The checklist should include the review of structural connections, coating conditions, checking of drainage systems, and testing the functionality of Lightning. Areas to which water is directed could include all areas containing dissimilar metals.
Cleaning gets rid of accumulated dirt, industrial fallout, and environmental contaminants, degrading the coatings over time. Pressure washing with low settings eliminates debris without doing any damage to protective finishes. Loose bolted interconnections will re-widen due to thermal cycling over time.
LED Lighting Integration
Canopy lighting may be upgraded without any structural changes using retrofit options. The advancement is a full benefit for people who have been operating within the metal halide technology for years now. The illumination effect is no less than the improvement of 75 to 80percent better representative of the total energy consumption in the metal halide technology. Put simply, one gets a breakthrough element that is supposed to provide more economic benefits within a decade without involving maintenance expenditures.
The quality is so outstanding that it becomes possible to incorporate non-electronic fittings into their lights, using 50,000-hour-rated life products with zero life lightning. It has a lot of extras. However, operating hours and rate conditions would see energy benefits paid within 18-36 months.
The new LED conversion will save energy within 18 to 36 months, contingent on particular billing rates and operation hours. Most rebate programs could also lower the price, as most of them offer incentives for the conversion to energy-efficient lighting in many jurisdictions.
Restoration vs Replacement
Replacement with changes in structure and frame, as done in the roofing panel outward or re-decking, has proved life extension, which is no more costly than a total replacement. As such it is only limited to localized damage from vehicle damage or may be as a result of exposure to environmental factors without having to perform a total canopy replacement.
Restoration is the more economical solution, where the structure is still intact; the cost here runs about 30-50 percent when compared to the total replacement, mostly in re-decking, while the output, in terms of presentation and overall effects, is the same. The structural integrity can be examined by your engineer, with suggestions for correct remediation works.

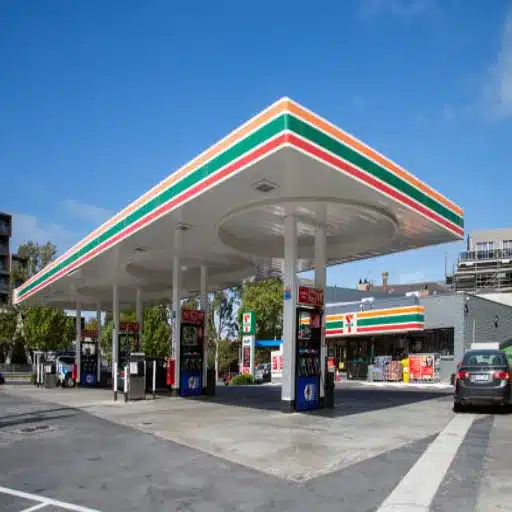

2026 Design Trends
Pertinent innovations and the development of client expectations may govern the next generations of canopy designs. Understanding these trends is a means to future-proof your investment.
Smart Technology Integration
Structural monitoring through smart technology, such as IoT sensors, offers real-time measurement and data on canopy load, vibration, and exposure to environmental stresses. It anticipates potential issues before they are visibly noticeable, through predictive maintenance algorithms. The LED lighting is adaptive to suit different surrounding fixtures and traffic movements, providing illumination using less power.
Inclusion of Solar and BIPV (Building Integrated Photovoltaic) exploits canopies from passive shelter to active energy generation, harnessing photovoltaic panels from the material of the roof such that they can generate electricity that offsets station consumption power while providing weather protection.
Sustainability Focus
Sustainability goals are directed by the recycled steel content in the canopy structure, and it does not have any loss in the performance of that structure. Daylight harvesting alongside occupancy sensors and high-efficacy LED fixtures is applied for reducing electricity usage, which is one of the most efficient designs available for energy-efficient use. The station will be placed in a readiness zone for green buildings that will be appealing to these eco-minded customers and entail environmental certifications.
Multi-Energy Hub Design
Installation of an EV charging dock between the canopies shall be the first step in enhancing the EV infrastructure. The charging points shall be fixed on the inside canopy columns or undersides to protect the relevant charging equipment and customers. To make ready for the hydrogen refueling, there should be sufficient structural capacity for future equipment mounting and routing for the required facilities to be combined for the expected future alternative fuel technologies.
Providing means to foresee changing infrastructure requirements left room for flexible mounting applications, oversized electric infrastructure, and foundation growth capacity support for expansions, with little additional construction needed.
Conclusion
Gas Station Canopy is one of the most important investments in the fuel infrastructure, and its design and installation is a process of business that impacts the operations for years to come. An appropriate canopy serves to cover customers, increase security, represent the brand image, and help increase fuel sales and customer satisfaction in the process.
Key takeaways for your project:
- Design selection: Space frame canopies offer superior spans and wind resistance for premium applications; steel truss designs deliver proven performance at moderate cost
- Engineering standards: Specify canopies designed for your local wind and snow loads with appropriate safety margins
- Cost planning: Budget 35K−35K−80K for typical mid-range installations, with premium space frame designs ranging up to $300K
- Timeline expectations: Plan 6 to 12 weeks for standard installation, with prefabricated options potentially reducing this significantly
- Future readiness: Consider smart technology integration and multi-energy compatibility to maximize long-term value
Installation of a canopy involves replacing existing structures or establishing new ones. Once finished, a structural canopy is supposed to bring back what one has spent on it through offering a safer condition, easier maintenance, higher sales, and improved historical value.
