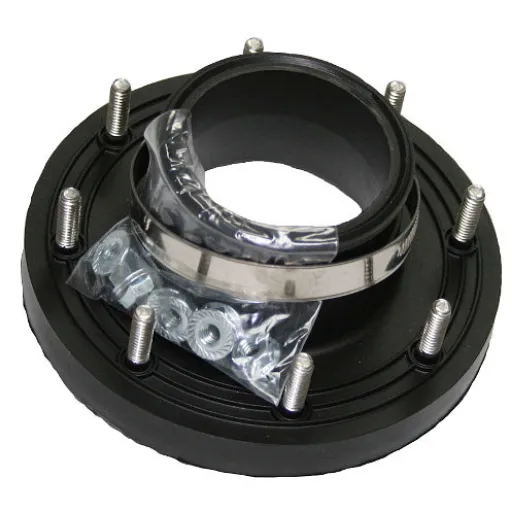

What Are Entry Boots in the Gas Station Context?
The term “entry boots” creates genuine confusion among procurement managers and contractors. Before specifying any product, it is essential to understand which of the two categories applies to your project.
Sump Entry Boots: The Equipment Component
Entry Boots, alternatively known as Fuel Containment Entry Boots, are unique bends which offer protective coverage to every pipe, electrical conduit or fuel pipe penetrating the walls of an underground containment sump. The design of every gas station comprises a layer of fiberglass or polyethylene sumps in the forecourt, around storage tanks, at the bases of the dispensers, and finally at the transition points in the fuel supply piping.
The seals provided by these boots are crucial as they are water and fuel-tight and allow the use of two-way containment. In the absence of such boots, the containment will fail. Groundwater may seep in and fill, assuming this sump has removable water-tight flooring. Fuel odors will escape into the ground. An environment inspector provided a compliance violation notice on the spot.
A single installation behind three tanks and six dispensers uses around fifty to sixty of these entry boots. Several of them are required to sustain the pressure of at least six feet of water column even after the passage of thermal cycles, wear, and the earth’s shifting.
Anti-Static Safety Boots: Worker PPE
Fuel gas station attendants, drivers of transport used to ferry such oil products, and those involved in their maintenance should be in anti-static safety shoes for static electricity protection to avoid the short-circuiting effect that is harmful and a catalyst in sending a flame in flammable medium including oil fuel.
Gasoline has the property of a high evaporation rate and, in a mixture with the ambient air will form an explosive environment in the area of the tanks, nozzles, and refuel pits. It is physical; every single movement will lead to that charge being created. This will be very disastrous if that charge finds no interaction with a grounding surface and dissipates through a person’s shoes, increasing the risk of contact.
Thus, I wish to underline that both products are very important. The two forms of safety measures shall be installed in a functional gas station as mentioned earlier. Entry Boots are designed for a workplace setting where the person can come in contact with different chemicals, burning fuel, and gas.

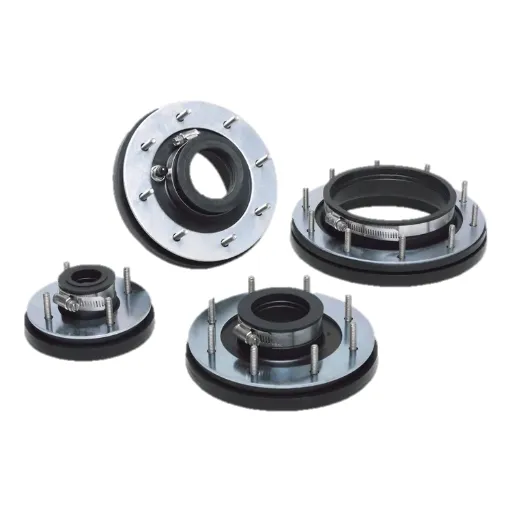

Gas Station Entry Boots for Fuel Containment: Protecting Underground Systems
Underground containment tanks are the very last hope for avoiding leaking fuel into the environment. Entry boots, however, represent the weakest link in the system and the source of containment failure most often mentioned.
Rigid vs. Flexible Entry Boots
The decision to select a flexible or rigid entry boots ultimately influences the ease of desealing after installation and reduces the likelihood of repairs being carried out on the field.
Entry boots are constructed from high-density polyethylene or fibreglass reinforced plastic composites. These create secure and leak-proof penetrations This means that they create a Rigid seal around any penetration without any scope for movement regarding the angle of the pen. The rigid boots are useful in situations where the pipework can be installed straight off and perpendicular to the sump wall. They are effective due to their fulfillment of the long-term sealing performance, especially towards installations where there is no or negligible forces acting in the form of ground movements.
Entry Boots made from elastomers like nitrile rubber and thermoplastic elastomers have been designed for more comfortable entrances. This is where you can easily install them at an angle as much as 10-15 degrees from vertical. This is important where retrofitting is taking place, or when there are other existing structures that foster a bad piping system. They do this without causing any fatigue stress to the seal structure due to secondary settlement of the ground.
More often than not, rigid boots can be used for new construction projects in good soil. In the circumstances of a retrofitting exercise or on unstable ground, a flexible kind of boot can minimize the danger of installation and allow some changes on the site without the need to begin a new round of work.
Single-Sided vs. Double-Sided Entry Boots
This Provision Directly Impacts Your Regulatory Compliance Strategies.
The single-sided entry boots internally seal against the walls of the sump. Under typical conditions, they function as a proper restrictor of fuel loss and groundwater leak. The single-sided enclosure boots are usually used for basic containment purposes.
Double-sided entry boot adds more compliance by having a cavity that is sealed between two opposing compression plates, attached to the sump. In this configuration, the sealed ring around the pipe is able to be pressurized and thus its tightness checked before starting and as part of all periodic maintenance. Double-sided boots should be utilized wherever the appropriate local requirements imply entry boots. Entry Boot provides a testable containment, and its use should be recommended or enforced in sites where checking of such containment for tightness is a must.
Let’s imagine that Ahmed, working as a procurement manager at a local fuel retail chain in the Middle East, orders single-sided Entry Boots for a 12-station expansion down the line. Auditing results after three years showed that secondary containment practices were due, as almost all equipment was single-sided. These eleven sites had to be retrofitted for double-sided entries, a long and costly process that actually cost another organization four times the initial material savings or more. Properly speaking, it would have been wise to specify double-sided entries from the very start.
Materials and Chemical Resistance
Not all rubber compounds perform equally in contact with petroleum products. Entry boot material selection must match the fuel types handled at your site.
| Material | Chemical Resistance | Best Application |
|---|---|---|
| Nitrile rubber (NBR) | Excellent for petroleum hydrocarbons | Gasoline, diesel, kerosene |
| Thermoplastic elastomer (TPE/Alcryn) | Good hydrocarbon resistance, flexible | Flexible boots, retrofit applications |
| HDPE (rigid components) | Excellent chemical resistance | Rigid boot bodies, containment systems |
| Buna-N | Petroleum-resistant, cost-effective | Standard fuel service applications |
Steel compression hardware must be coated or manufactured from stainless alloys. Bare steel corrodes rapidly in the damp underground environment, losing clamping force and compromising the seal over time.
Entry Boot Sizing and Compatibility
Entry boots are made for pipes that have a diameter of 12 to 200mm, and cover the typical ranges of fuel, vapor recovery, and electrical conduits in today’s fuel stations. Since there are sumps made of either fiberglass or Type-2 Piping (HDPE), it is cardinal to make sure that sumps are compatible with entry boots at the specification stage. Entry Boots that will be installed in fiberglass sumps have a different compression geometry than those made to be installed in either thermoplastic sumps.
Request a quote for your next gas station project and our technical team will confirm entry boot compatibility with your specific sump and pipe specifications.

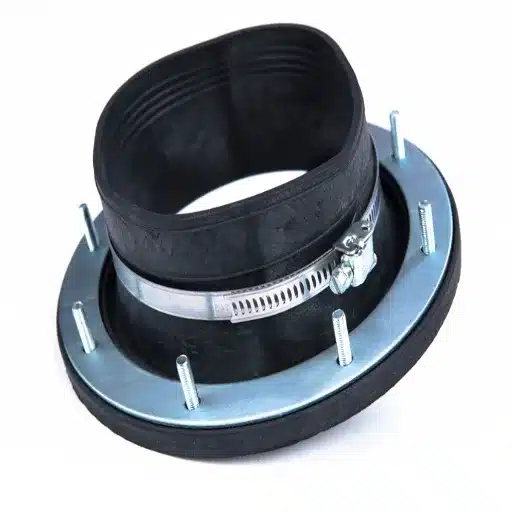

Gas Station Entry Boots for Worker Safety: Anti-Static and Explosion-Proof Standards
People, in most cases, will not notice static electricity as it does not build up loudly or visibly, yet it has the potential to induce ignition within fractions of a second. Anti-static and explosion-proof footwear takes first place among measures of individual level of prevention of this risk hazard in each and every petrol filling station. To choose the most appropriate entry boots for the use of those working inside the gas station, there is a need to know their electrical classes and also the safety class defined for them.
The Electrostatic Hazard at Fuel Stations
When filling a tank, there is fuel movement through the pipes, and this generates charges due to triboelectric friction. When workers are walking on the forecourt, climbing the tank steps, or handling perimeter delta hoses, they are prone to static accumulation from mere physical activity. Under the most favorable conditions, a person can reach several thousand charges.
Moreover, when a person who has already charged herself comes in contact with some metal, e.g., a couple of fuel hoses, a tank cover, or a gauge stick, there appears an arc of discharge. Such a flammable gas in the right mixture can be ignited by a spark.
Entry Boots to static dissipation provide a controlled resistive route from the person’s body to the ground in order to continue dissipating the charge before it becomes dangerous. Such restraint is not termed,, control,” as it has become an engineering measure as adopted in all safety codes from the greatest extent to the least.
Understanding Anti-Static Boot Electrical Classifications
Anti-static boots are a distinct terminology with plausible connotations and extents. It is important to note that there are three types of electrical classifications, and even using one in place of the other is dangerous.
In anti-static (A) Entry Boots, one will find the sole electrical resistance to levels over 100 kilohms but lower than 1000 megohms. This range can dissipate charges but will also provide limited protection in the event of accidental low-voltage electric shocks. This class is applicable to gas station attendants in most of the work conditions.
Conductive(C) Entry Boots have sole electrical resistances inferior to 100k Ohms. This assists in rapid and efficient dissipation of charges, although it offers zero protection from electrical shocks. Conductive shoes are specially intended for electronic plants/factories. Such environments are considered explosive where electric as well as static discharges are concerns; such shoes cannot be worn in gas stations.
This is called electro-insulating (EI) footwear that protects a person from an electrical shock. It is meant for protection against electricity and is not very effective for static control. This footwear should not be confused with anti-static footwear.
In situations where gas stations are concerned, ideally, safe footwear with a resistance in the range of 100 kiloohm to 1,000 Megaohm is the manufactured entry boots, which should be used.
Key Safety Standards for Anti-Static Boots
Real-life situation: Mei, a safety supervisor in a giant petroleum conveyance factory based in China, struggled with a very tough audit after her safety boots supplier was unable to produce GB 4385 No Petrochemical plastic Sole Entry Boots Conformance. These looked guaranteed, yet there were no safely tested records and the administrator ordered that the 340 employees wear new shoes within thirty days. The situation could be averted if the sourcing was done from a supplier with up-to-date certification documents, necessitating neither missing audit nor ad hoc procurement cost.
International and Chinese Standards:
| Standard | Jurisdiction | Key Requirement |
|---|---|---|
| EN ISO 20345:2022 | Europe / international | Anti-static resistance 100 kΩ–1,000 MΩ |
| EN 1149-3/5 | Europe (ATEX environments) | Electrostatic dissipation for explosive atmospheres |
| ASTM F2413 | United States | Safety footwear performance requirements |
| GB 4385-1995 | China | Anti-static and conductive footwear technical requirements |
| GB 21148-2020 | China | Comprehensive labor insurance shoe standard |
The GB 4385-1995 standard specifies that anti-static footwear must be tested for electrical resistance every 200 hours of use in service, a maintenance requirement often overlooked by site operators. Boots that passed certification at purchase can drift out of compliance through contamination, wear, or chemical exposure.
S1 to S5 Safety Ratings Explained
Safety footwear according to European standards is marked by a code that tells which protective features are included. In petrol station use, the relevant grades are:
S1: Baseline safety toe shoe, closed heel, no static electricity, and the energy absorption seat in the heel. These are the minimum requirements in most gas stations.
S1P: S1 performance incorporating penetration-resistant midsole. Suitable in the presence of dangers involving stabbing.
S2: Performance of S1 with the heel increased in height to water-resistant means. Suitable for work outside gas stations where rain is common.
S3: Additionally included in S2 is the resistant midsole and a crated bottom. This specification is the best suited for most on-site maintenance and service personnel at the gas stations.
S4: A rubber or a polymer boot, containing basic safety toe and anti-static protection. Mainly used in chemical and water-prone areas.
S5: Also include mid-lobule resistance of the soles and S4 with cleated renditions. This is the maximum normal rating needed only in higher-risk petrochemical areas.
Other specifications must be considered while considering the above:
- FO: The base of the shoes is fuel oil proof for ratchet duties inside the gas station premises.
- SRC: This one offers foot skidding protection for floors made of steel and ceramic (which can get quite slippery), hence needed for the gas station’s wet environment.
- HRO: This means the shoe has been made with a base sole that can cover extreme temperature environments like heat conditions.
The tactical gear that passes these tests is equivalent to S3 FO and SRC, which is quite before designing any Entry Boots for use in a particular gas station.

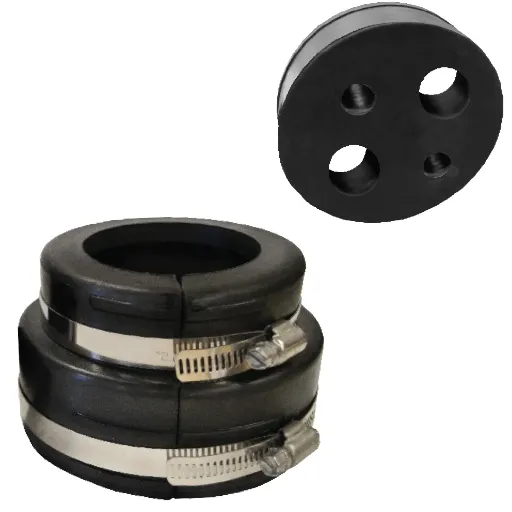

Procurement Guide: Specifying Entry Boots for Gas Station Projects
Entry boots of both types need to be consistently specified by both procurement managers and engineering contractors. Otherwise, gaps and compliance-related complaints, as well as warranty issues, will arise due to not having consistent specifications throughout the project.
Calculating Sump Entry Boot Requirements
One must first carry out a comprehensive site assessment. Assess the total number of pipes and conduits passing through each containment sump installed (comprising dispenser sumps, tank top sumps, as well as intermediate transition sumps). An entry boot should be installed when and only when there is a penetration for every penetration.
For an average new generation model design:
- Top of Tank sump: three to five penetrations per tank (the fill line vocal, the vantage line, the product lines, and such like)
- Submersible turbine pump: four to eight gaps impinged per sump
- Dispenser cassation: two to four crevices per dispenser
Add ten percent coverage for the estimated handling volume so as to take care of the breakages and field variability encountered. Entry Boots are inexpensive compared with the cost of rework labor, and the option of over-caulking is avoided by specifying ample Entry Boots.
Evaluating Anti-Static Boot Suppliers
Those wishing to find anti-static or anti-explosive entry boots, particularly at most gas station(s), and other places must ensure the following before making any decision on the supplier in place:
- Observe current and acceptable certification documents outlining specific boot models and not only the brand if certified.
- Every production batch against the decade kilo ohm to one decade megohm specification should be sampled, tested, and documented.
- Sole compound chemical resistance has to be given in the test report, to determine if it is capable of withstanding fuel oil or petroleum solvents, etc.
- Observe the national Standards of the country in practice, such as: Table GB 4385 for China, Table EN ISO 20345 for Europe/International, Table ASTM F2413 for the U. S.
Integration with the Broader Safety System
Well, neither sump entry boots nor anti-static safety greenery footprints are entities in themselves. Each is a part of an ensemble of safety measures and control systems that are designed to ensure the efficacy of the entire system, which includes:
- Composite piping systems made of inert materials without divisive internal components got that leads to a lesser chance of leakage in the joints
- Illumination with mechanisms designed to not to provide sparks on the forecourt
- Alerts and alarms for leakage detection and warning about the loss of containment at an early stage
- Earthed grounding and bonding facilities that complement the wearing of anti-static footwear, because it facilitates an earth wire at dispensers and tank enclosures
- Manhole covers that are not only conductive but also provide static control to the infrastructure
Renting of Entry Boots is not applicable, especially in the case of a defined package along with the equipment, order compatibility, atumento and use document, and qualitative commissioning.

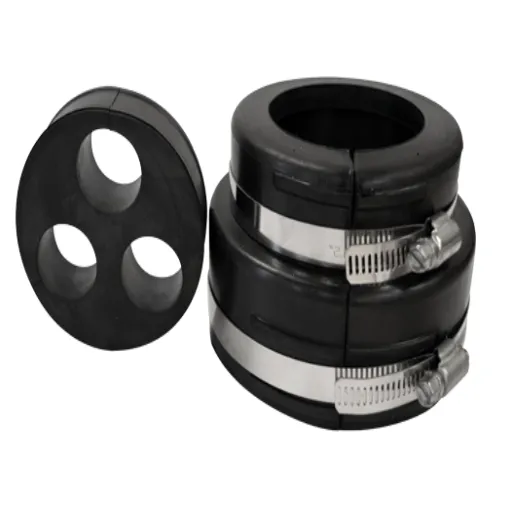

Common Entry Boot Problems and How to Prevent Them
Understanding failure modes enables proactive specification and maintenance decisions.
Groundwater Infiltration
One of the most frequent complaints regarding sump Entry Boots usage is the leakage of water inside the sump during heavy rainfall. More often than not, this is caused by one of three reasons, namely, improper selection of the entry boot for use with a specific type of sump material, improper tightening of nuts and washers during entry boot compression installation, or installation of an entry boot over a dirty and/or wet pipe.
In order to avoid these problems, there is a need to review the suitability of the intended materials to order, Installation Instructions to address Torque Specification, and Availability of a window for complete booting, since booting will only be carried out when the existing pipes are clean and dry.
Fuel Leak at Boot Interface
Should any fuel be traced inside the containment sump at the entry point, such as penetration, entry boots, the real issue usually tends to arise from the fact that the boot elastomer and the type of fuel on use are not compatible or that the boot was mechanically injured while being fitted. When specifying nitrile or Alcryn rubber with respect to the fuel blends in use, in the design, this eliminates the conflict of protection. When designing with flexible entry boots and considering installation training, most issues of straight-jacket effects shall not arise.
Premature Failure of Anti-Static Boot Properties
The boots used can become nonconductive due to contamination with nonconductive materials, like oils, wax, or cleaning fluids, that form a film on the sole. Even if a pair of boots pass the quality check during the production stage, they may malfunction after a few weeks if the workers polish them with soothing shoe polish or trample through the area filled with spilled fuel.
Apart from that, it is necessary to conduct electrical resistance tests of all used antistatic footwear at least quarterly, using an approved footwear tester. Any footwear that tests below 100 kΩ or above 1,000 MΩ should be decommissioned at once.
Frequently Asked Questions
What is the difference between a sump entry boot and a pipe seal?
While the terms are at times used in place of one another, door boots refer to a sealing component situated at the wall penetration inside a secondary containment sump. It can be used to seal the penetration inside fiberglass or high-density polyethylene curbing and still be designed to be field-installed without adhesives or hot air welding.
How many entry boots does a typical gas station installation need?
Normally, for a standard three-tank, six-dispenser system, you require 50 to 60 entry boot installations to cover the entire sumps. The larger sites with more tanks, more dispensers or a complex pipe layout will require the number of them to be lined in the same proportion.
Can I use standard industrial safety boots at a gas station instead of anti-static boots?
No, because conforming with standards, boots in non-insulating soles are unsafe and unacceptable in a flammable vapor atmosphere. The certification requires an antistatic quality as per GB 4385, EN ISO 20345, and ASTM F2413.
How often should anti-static boots be tested in service?
Standard GB 4385 mandates that all chains should be tested every 200 service hours. However, in reality, most safety programs test at a rate of as little as quarterly, when they see or suspect something contaminated or damaged, such as immersion in fuel spills or exposure to cleaning chemicals.
What is the minimum pressure rating for a sump entry boot?
Slush boots must be rated to a 6 ft liquid column. Double-tested slush boots must comply with the requirements collected in both directions, and they have to be hydrostatically tested during commissioning to confirm seal integrity before the system is put to service.
