When Katrina made landfall on the Gulf Coast in 2005, the gas station infrastructure suffered a double blow. More than forty canopies came down, not because the gusts were so strong to break them, but because the structures were so badly constructed. In the aftermath, the reconstructive engineers pointed out a common motif in the cases: single identical rows of pillars that were cantilevered, foundations that were not embedded deeply enough, which are conjunctively known as the typical beam-column joint, and it begins with this map.
In any case, if you are going to build or renovate a gas station, the selection of the canopy is a different domain than you imagine. That’s because it’s not just a simple roof, but a structural Space Frame, which should protect customers, tools, and money for long decades of weather, use, and authorities’ observations.
Comprehensive steps on specifying, purchasing, and maintaining the Space Frame canopy for gas stations would be provided in this guideline. Also, included in these guidelines are the design structures, processes, materials used, installations as well as expenses, and the weaknesses that even the most seasoned station owners overlook.
What Is a Space Frame Gas Station Canopy?
Space Frame gas station canopy system consists of an advanced and durable double-layer structure of grids made out of steel with tubes connected to each other at points that form an enforce roofs without adding much weight to the entire structure. The reason for this is that space frames do not follow any particular distribution of loads; rather, they are three dimensional light weight systems of interjoined single members. This enables space frames to span some 20–40m without supporting interior columns that could hinder vehicles.
Almost all fuel stations are made of this kind of construction, called the bolted ball joint space dryer. Here, hollow tubes are joined by cast steel bars that end in perpendicular walls to the other hollows with bars drilled with holes and ends joined with high tensile strength bolts. The top chords are in compression, the bottom chords are in tension, and all the other members are webs which take shears across the depth of the structure.
The final product? A roof weighing only 35-50 kg/m² can safely accommodate wind speeds of about 0.6 kN/m², snow, and earthquake intensity zones up to 8. That is construction – and performance – you cannot go wrong with.
How the Bolt Ball Joint System Works
Visualize the geodesic dome projected on a plane, altered to a rectilinear formation. Every place where nets intersect is represented by a steel sphere called the node of diameters from 100 mm to 200mm that is embedded with holes at angular points. Steel pipes of sizes (for example, Ф60*3.5 to ф159*8), where the wall thickness depends on loads, are connected by bolting them directly into the spherical nodes.
The genius of this system is that it requires no on-site welding. The components of the frame are prefabricated in a factory, cut to size, drilled, and given surface treatment before delivery to the construction site. The members of the installation teams just have to bolt as per the assembly instructions, therefore, decreasing the installation period as well as the possible defects in quality.

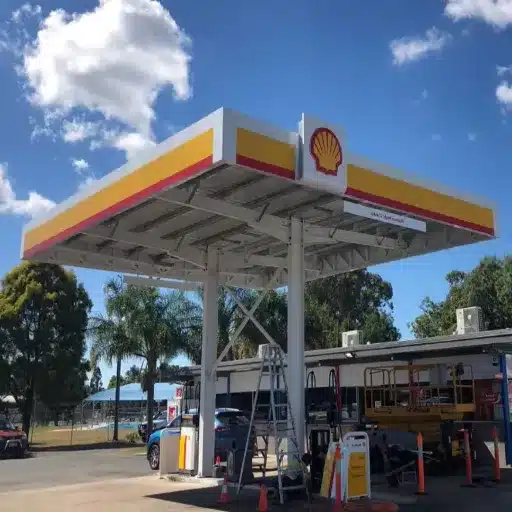

Space Frame vs. Alternative Canopy Structures
Not every gas station needs a space frame. Understanding when this structure excels—and when alternatives make more sense—can save you thousands in unnecessary costs or expensive retrofits.
H-Type Light Steel Structure
The traditional approach uses I-beams or H-section steel columns supporting horizontal beams. This system is straightforward to design and familiar to most local contractors.
When H-steel makes sense:
- Smaller stations with spans under 15 meters
- Regions with minimal seismic activity
- Projects where local fabrication is preferred over imported components
The drawbacks: H-steel structures are heavier (higher foundation costs), require more interior columns (reducing maneuvering space), and don’t handle torsional loads as efficiently as space frames.
Membrane/Tensile Structures
Contemporary tensile fabric guards are made of traction elements as the structural component and stretched synthetic films (PVC, PVDF, PTFE, ETFE, or similar), which very often need to be anchored on the cables. Besides extravagant architectural effects, such structures weigh significantly less than the steel ones.
Structural membrane systems perform outstandingly:
- Brand-sensitive city centers, train stations, and other transport nodes
- Mobile or temporary buildings
- Sparsely snow-covered areas
The disadvantages: Cloth structures need changing every 15-25 years, demand more attention, and do not provide enough capacity to hang too many lights or signs.
Space Frame Advantages
| Performance Factor | Space Frame | H-Steel | Membrane |
|---|---|---|---|
| Maximum span | 20-40m | 15-25m | 10-30m |
| Material weight | 35-50 kg/m² | 60-90 kg/m² | 3-10 kg/m² |
| Seismic resistance | Excellent | Good | Moderate |
| Installation speed | 7-14 days | 3-4 weeks | 2-3 weeks |
| Cost per m² | $30-80 | $40-90 | $60-150 |
| Maintenance (50 years) | Low | Moderate | High |
| Signage integration | Excellent | Good | Limited |
For most permanent fuel stations requiring clear spans over 20 meters, the space frame delivers the optimal balance of cost, durability, and performance. That’s why it has become the dominant structural choice for modern gas station canopies worldwide.

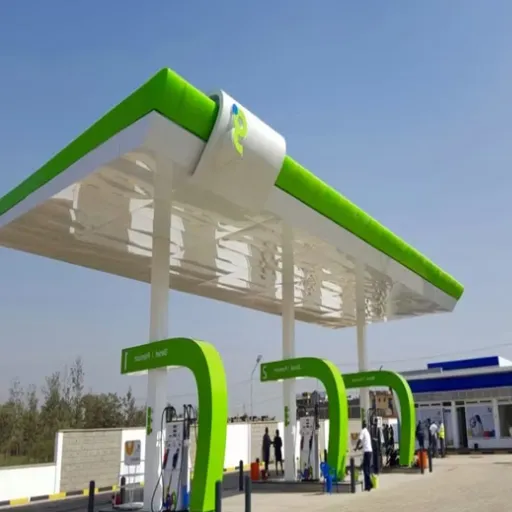

Technical Specifications and Materials
The difference between a canopy that lasts 50 years and one that fails in 10 often comes down to material specifications that aren’t visible after installation. Here’s what you need to specify.
Steel Grades and Standards
The standard specification for the majority of components in Space Frame is Q235B carbon structural steel. It has good weldability, sufficient strength (235 MPa), and is economical for ordinary purposes.
Q345B low-alloy structural steel provides higher strength (yield strength 345 MPa) for:
- Long-span applications over 30 meters
- High wind load regions (coastal areas, hurricane zones)
- Heavy snow load climates
- Seismic zone 7-8 regions
International Similar Grades:
- In North America, ASTM A36 is similar to Q235B
- In Europe, S355JR is a grade comparable to Q345B
- In Japan, JIS SS400 is a grade comparable to Q235B
Important point to note: Mill test certificates with chemical elements and mechanical properties are supplied for each order. The biggest problem associated with the Space Frame is imported sheds with structurally weak steels that fail prematurely.
Member Specifications
| Component | Typical Section | Steel Grade | Notes |
|---|---|---|---|
| Upper chord | Φ60×3.5mm to Φ89×4mm | Q235B/Q345B | Compression members |
| Lower chord | Φ76×4mm to Φ114×4mm | Q235B/Q345B | Tension members |
| Web members | Φ48×3mm to Φ60×3.5mm | Q235B | Diagonal bracing |
| Support columns | Φ159×6mm to Φ219×8mm | Q345B | Vertical load transfer |
| Ball nodes | 100-200mm diameter cast steel | ZG230-450 | Factory-machined holes |
Grid spacing typically follows a 3m × 3m module, though custom geometries are possible for unique station layouts.
Surface Treatment and Corrosion Protection
Architectural frames at gas stations are reproduced under the influence of fumes, precipitation, heat, or cold from adverse weather conditions. There is a whole set of surface preparation techniques that will make the structure last 50 years as opposed to causing trouble and expense in 15 years.
Hot-dip galvanizing: 85 to 100 microns (standard requirements for class C4 atmospheric corrosion according to ISO 9223). These exert sacrificial action through the zinc even when the coating is scratched.
Paint systems: In response to the appealing look of the structure or to protect it:
- Epoxy zinc-rich primer (60-80μm)
- Epoxy intermediate coat (60-80μm)
- Polyurethane topcoat (40-60μm)
- Total dry film thickness: 160-220μm
Fire protection: Where local codes require, an intumescent fire protecting coating can be installed on inner surfaces of the building, enabling the structure created from steel to sustain up to 1.5 – 2.0 hr fire exposure.
Load Design Criteria
Canopies should support the excursions listed below:
Dead Load:
- Weight of structure: 0.3 – 0.5 kN/m²
- Weight of roof: 0.1 – 0.3 kN/m²
- Lighting and signage: 0.2-0.5 kN/m² (concentrated at attachment points)
Live Load:
- Maintenance access: 0.5 kN/m²
- Snow load: Region-specific (0.3-1.5 kN/m² typical)
Environmental Load:
- Wind load: The baseline design wind is 0.6 kN/m² and 1.5 kN/m² in coastal areas/hurricane basins.
- Seismic: Following the intensity prescribed in mass codes of construction, the construction is according to zone 8.
Factor of safety: Usually, in Space Frame constructions, nodes go up to approximatively 50% for accidental, impact, or partial damage loads permutations.
Design Considerations for Fuel Station Applications
A well-designed canopy integrates seamlessly with fueling operations, safety systems, and brand identity. Here’s what experienced engineers prioritize.
Span and Clearance Requirements
Column spacing directly impacts both structural efficiency and fueling bay functionality. Standard configurations include:
- Single-span cantilever: Columns only on one side (typically the convenience store side). Creates maximum open area but requires larger column sections and deeper foundations.
- Double-span symmetric: Columns on both sides of fueling lanes. Most common for multi-lane stations. Typical span 20-30 meters.
- Multi-span continuous: Intermediate columns support extended canopies for large truck stops or fleet facilities.
Vertical clearance must accommodate:
- Standard vehicles: 4.2m minimum
- Box trucks and RVs: 4.9m recommended
- High-clearance vehicles: 5.5m for commercial lanes
Height considerations: Higher canopies reduce wind loads but increase column costs and foundation requirements. Most fuel stations use 6-9m eave heights.
Integration with Safety Systems
Modern gas station canopies serve as mounting platforms for critical safety infrastructure:
Explosion-proof lighting: 100 lux at pump level is the minimum illumination required to be achieved by LED fixtures mounted to the lower chord. Hazardous areas can be illuminated with either Class I, Division 1 or Zone 1 – certified fixtures as appropriate.
Fire suppression: Water deluge, or in some instances, foam systems may need to have built-in pipes and the possibility of installing the nozzles incorporated.
Emergency shutdown: ESD buttons will be located on the column base without compromising the corrosion and weather resistance of the housing.
Lighting protection: As the canopy is a metal structure of a height above all other elements on the ground, it is necessary to apply the following measures:
- Air terminals (or lightning rods) mounted at elevated parts
- Down conductors attach to the steel structure.
- It is possible to achieve a grounding resistance of less than or equal to 4 Ω with electrodes.
Drainage and Water Management
Inadequate drainage results in degradation of canopies from the inner layers. The formation of water pools on the roof intensifies wear and tear. It adversely impacts the foundations due to the conduits of water through these channels.
Roof slope: The minimum slope should be 1:50 or 2% in the direction of drainage points. Insulation should be tapered, or a structural slope should be given to flat roofs.
Gutter systems: Gutters should form part of the edges of the canopy. Specifically:
- For normal flows, gutters should be a minimum of 125mm in width
- There should be downpipes within 6m to 10m of any part being drained
- Provision of splash blocks or drain away connections where water is taken away from the structure
Water testing: Before the completion of the whole process, water tightness testing is conducted. Then, spray the roof for 30 minutes, checking all seams, gutters, and penetrations.
Installation: From Factory to Fueling Lane
Being quick to install is one of the most attractive benefits of a space frame. If you use a regular steel structure, the station might have to remain closed for a month, but when the space frame is well organized, it can be set up within a timeframe of 7-14 days.
Factory Prefabrication (80% Complete)
In the process of prefabrication, every material is given considerable attention. This includes:
- Material cutting and profiling: Tubes and steel are cut to the required lengths, and the ends are prepared if necessary.
- Ball node machining: Holes and cavities are bored on the surfaces of spherical castings to suit the member or members to be connected to it.
- Surface treatment: Blast cleaning to SL2.5, and spray galvanizing and or painting.
- Component marking: Each element is marked in accordance with the assembly drawing.
- Quality control: Inspections and dimensions, various checks, coating, torque of bolts, etc.
Documentation delivered: Assembly drawings, video of assembly of elements, torque of bolts, and installation sequence with packing of elements.
Site Assembly Methods
For the process of erecting a Space Frame, there are three main techniques that installation crews make use of:
High-altitude assembly: Construction members and nodes are installed either on lifts or scaffoldings placed on top of the work structures by workers. Such works are suitable for constructions of small scales where cranes cannot be utilized, as the approach is limited. It is time-consuming but does not necessarily require sophisticated equipment.
Block installation: Rather than assembling the space frame canopy in the air, it is divided into portions (usually blocks with dimensions of 3m × 6m) and preassembled on the ground. Then this erected portion is craned to its position. Much quicker than assembly at height, but access by crane and coordination of lifts are mandatory.
Sliding method: This is used particularly for long spans. After one section is built and fixed, the following section is created and mounted on its temporary supports before repositioning it to form a complete unit. This design reduces coasting cranes but creates greater challenges with alignment.
Installation Timeline (Typical 4-Bay Station)
| Day | Activity | Crew Size |
|---|---|---|
| 1-2 | Foundation preparation and column installation | 4-6 workers |
| 3-5 | Lower chord assembly | 6-8 workers |
| 6-8 | Web member and upper chord installation | 6-8 workers |
| 9-10 | Roof panel and fascia installation | 4-6 workers |
| 11-12 | Electrical, lighting, and signage | 3-4 workers |
| 13-14 | Final inspection and commissioning | 2-3 workers |
Critical success factor: Weather. Rain, high winds, or freezing temperatures can halt assembly—particularly the critical bolt-torquing operations where proper friction grip must be achieved.
Understanding True Costs: Beyond the Square Meter Price
When evaluating space frame canopy quotes, the per-square-meter price is just the starting point. Here’s how to budget accurately.
Material and Fabrication Costs
Costing of the China-made items (FOB basis):
- Economy specs (Q235B, basic galvanization): $20 to $35/m²
- Standard specs (Q235B/Q345B, full coating) will cost: $35 to $55/m²
- Premium specs (Q345B, enhanced corrosion protection, architectural finishes): $55 to $80/m²
International market pricing (logistics and duties are included):
- +30-50% for shipping, customs, and importation fees
- Usual delivered costs: $40 to $130/m², depending on the locale
Volume discounts: Most manufacturers offer tiered pricing:
- 100-500 m²: Standard pricing
- 500-2,000 m²: 10-15% discount
- 2,000+ m²: 20-25% discount
Installation Cost Components
Installation cost is generally equal to 20-40 percent of the total project cost:
- Labour: 15−30/m² depending on the level of wages and the complexity of the locality
- Equipment: Crane rental (15−30/m² depending on local wages and project characteristics per square meter; 500-2000/day, scaffold, and lifting equipment)
- Site preparation: Foundation excavation, pour concrete and utilities
- Project management: Supervision and control of the project, maintenance of quality, prevention of danger, and conformity compliance.
Total Project Budget Estimation
For a typical 30m × 15m canopy (450 m²):
| Category | Economy | Standard | Premium |
|---|---|---|---|
| Structure (delivered) | $13,500 | $22,500 | $36,000 |
| Installation | $6,750 | $9,000 | $13,500 |
| Foundation | $4,500 | $6,750 | $9,000 |
| Electrical/lighting | $3,000 | $4,500 | $6,750 |
| Total | $27,750 | $42,750 | $65,250 |
| Cost per m² | $62 | $95 | $145 |
Ready to get a detailed quote for your station? Contact our engineering team for a customized assessment →
Common Failures and How to Prevent Them
The engineering failures that destroyed canopies during Hurricane Katrina weren’t mysteries—they were predictable consequences of design shortcuts, construction defects, and maintenance neglect. Here’s what to watch for.
Design-Related Failures
Inadequate wind load calculation: Many early canopy designs used simplified wind load formulas meant for enclosed buildings. Open canopies experience higher wind pressures and suction forces. Modern designs must follow ASCE-7 or equivalent codes specifically addressing open structures.
Missing frame action: Single-row column arrangements that don’t create rigid frames are essentially cantilevers. Under lateral loads, these columns rotate at the base, transferring massive moment forces to foundations. Always specify rigid beam-column connections or X-bracing between columns.
Foundation inadequacy: The 2005 hurricanes revealed numerous cases where columns pulled out of foundations entirely. Embedment depth, rebar configuration, and concrete strength must account for the full uplift and overturning loads—not just vertical compression.
Construction Defects
Insensitive wind load calculation: Most canopy controllers from the early period used wind load formulas that were made for enclosed buildings. On the contrary, the poorer wind loads mostly include high-pressure and suction forces. Recent designs of canopies need to be more in line with ASCE-7 or equivalent standards, with a focus on open structures.
Missing frame action: Actually, cantilevers are single-row column arrangements and so do not carry internal buildings into a rigid frame. In lateral loads, these elements rotate over their bases, transferring massive moment forces to the foundations. Always mention a rigid beam-column connected or X-brace between columns.
Foundation inadequacy: The columns were actually pulled out of the entire foundation because of many of the hurricanes in 2005. The depth of embedment, the iron configuration, and the concrete strength must be calculated for the total uplift and overturning loads, not just for vertical compressive loads.
Maintenance-Related Deterioration
Column base corrosion: The base is the place where water collects when it rains against the column, often covered by aesthetic concealments or a pad of concrete, leading to hidden pooling water. Visible signs of occurrence are accompanied by a capacity loss of 50% or more.
Prevention strategy:
- Remove base coverings once a year
- Rust, scale, and moisture accumulation inspection at the base
- Cleaning and touch-up coats
- Ensure that the drainage is located at some distance away from the column base
Crack apart connection: This includes vibration and thermal cycles that slowly release the grip of a bolted connection. Even a torqued-to-specification installation can yield 20-30% preload loss in the first year.
Preventive Standards:
- Re-torque critical connections after the first year
- Inspection of bolted joints for loosening or corrosion every 2-3 years
- Replace all threads showing damage or rust.

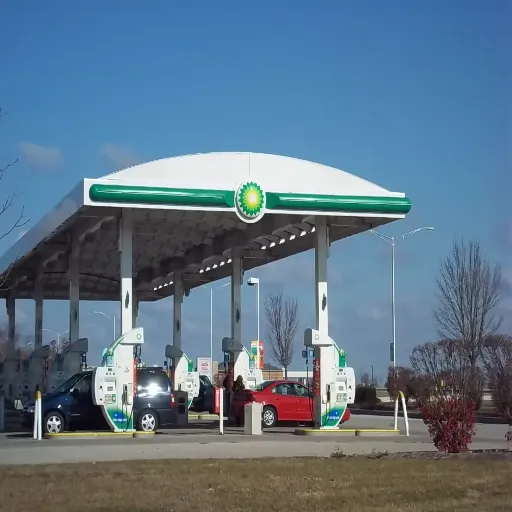

Selecting a Manufacturer: Evaluation Criteria
Not all space frame suppliers deliver equal quality. The lowest bid often becomes the most expensive choice when premature failure, safety violations, or project delays are factored in.
Essential Certifications
The baseline of quality management certification is ISO 9001:2015. It means that there are documented processes and controls for quality, but doesn’t guarantee competence.
Verified compliance with design standards, such as:
- GB 50583-2020 (Standard for Chinese space lattice structures)
- JGJ 7-2010 (Chinese technical standard)
- AISC 360 (American Iron and Steel Institute)
- EN 1993 (Eurocode 3 for steel structures)
Welding certifications are AWS D1.1 or its equivalent for any assembly using several welded components.
Red Flags to Avoid
Vague material specifications: Descriptions like “carbon steel” should be viewed with a bit of wariness, given that this term may not necessarily cover a specific grade (Q235B, Q345B) or “galvanized” does not specify a thickness (with a minimum 85μm).
Missing engineering calculations: Any genuine manufacturer would furnish proper calculations regarding the structure where member forces, node stresses, and deflections of the design loads are served. No calculations mean nothing of engineering oversight.
Pricing significantly below market: If the quotation is lower by 30% than its competitors’, then the quality of the material, the thickness of the coating, the bearing or bolt specifications, and fabrication tolerances are being compromised.
No reference projects: Have a look at some previous installations of any trustworthy supplier with most projects based in the climate zone, closely following region-specific codes.
Pre-Qualification Checklist
Before finalizing an order, check:
- Mill test certificates applicable for steel items
- Coating thickness and adhesion test report
- Structural calculations signed by a licensed engineer
- Quality control plan with hold points for inspection
- Installation support or clear assembly guidelines
- Warranty conditions (minimum 10 years structural, 5 years for coating)
- After warranties for maintenance and spare parts

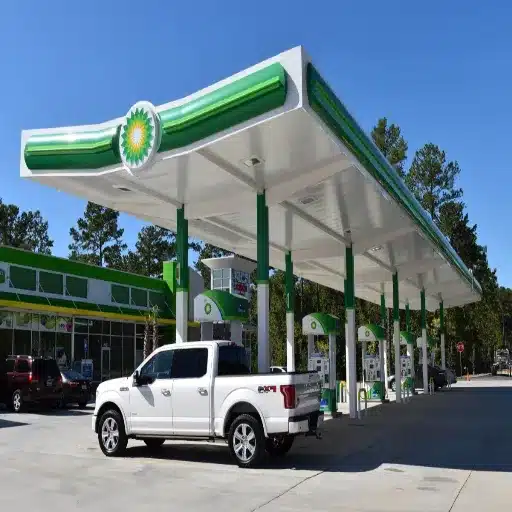

Maintenance Protocols for Long-Term Performance
A space frame canopy built to 50-year standards can fail in 15 years without proper maintenance. The good news: maintenance requirements are minimal compared to other structural types.
Annual Inspection Checklist
Visual inspection (accessible surfaces to suit):
- Examine coating condition—chalking, peeling, or rust breakthrough signals
- Inspect bolted connections for loosening or corrosion
- Roof panels and facia should be checked for possible physical damage or water infiltration
- Verify that cross plate water shed drains are not clogged and are functioning
Column base inspection:
- Uncover column bases: inspection includes the corners of the base
- Check for machine gaps, moisture accumulation, rust, or concrete spalling in the column base
- Check the slope away from the column base as a verification of drainage
Connection torque verification:
- Sample 10-20% of all the bolted connections that are visible
- Retorque any bolts that are torqued below specification
- Replace any bolts where there is thread damage or high corrosion.
Five-Year Major Inspection
Every five years, conduct a comprehensive evaluation:
Structural assessment:
- A professional engineer reviews the structure for changes in deflection, alignment, or connection integrity
- Ultrasonic testing of critical welded joints (if applicable)
- Load testing of suspect areas if damage is observed
Protective systems:
- Coating thickness measurement at multiple points
- Touch-up painting of any areas below the specification
- Gutter and downpipe replacement if corrosion is advanced
Documentation:
- Photographic record of condition
- Updated maintenance log
- Repair recommendations and cost estimates
When to Call an Engineer
Contact a structural engineer immediately if you observe:
- Visible sagging or deflection of the roof plane
- Cracks in welds or bolted connections
- Column leaning or foundation movement
- Significant rust affecting more than 5% of any member’s cross-section
- Damage from vehicle impact, severe weather, or fire
Conclusion
The space-frame canopy over the gas station can rightly be one of the best modern-day solutions for a structural component on a fueling station. In its blend of lightweight, high strength, rapid on-site installation, and 50-year durability, it is, possibly, the most globally recognized choice for stations.
But such capacity is contingent upon correctly obtained details—from specification of the right steel grades and coat thickness to rigorous supervision of step-by-step quality control at the fabrication and installation sites. Hurricane Katrina and many subsequent studies reveal that shortcuts in the design or construction could create unnoticed skimming of vulnerabilities, and once discovered, immediate catastrophes go into action.
Key takeaways:
- Space frames deliver optimal span-to-cost ratios for spans over 20 meters
- Q235B or Q345B steel with 85μm+ galvanization ensures long-term durability
- Bolt ball joint systems reduce installation time and eliminate field welding risks
- Annual inspections—especially at column bases—prevent the corrosion that destroys structures from within
- Manufacturer selection based on certifications, calculations, and reference projects protects your investment
Be it a new or a replacement, the principles in this guide shall aid you in specifying, buying, and maintaining a structure that would lead to the protection of your customers and your business for decades to come.
Ready to specify a space frame canopy for your project? Request a detailed quote with engineering calculations from our team →
At Shandong Shengrui Intelligent Equipment Co., Ltd., we engineer gas station solutions built to last and backed by global expertise. From space frame canopies to complete fueling infrastructure, every product meets stringent international standards, so you can focus on running your business with confidence.
