More than 534,000 regulated underground storage tanks operate across the United States. Automatic tank gauge leak detection is one of the most common defenses against fuel releases. Yet EPA data shows release-detection compliance still trails spill prevention, overfill protection, and corrosion protection. A single undetected leak can trigger cleanup costs, regulatory penalties, and site downtime that erase years of profit. New to underground storage? Start with our complete guide to underground fuel storage tanks before you choose a specific tank type.
If you manage a fuel station, integrate gas station equipment, or specify monitoring systems for clients, you have probably seen the confusion firsthand. ATG datasheets talk about CSLD, SLD, 0.2 gph sensitivity, and magnetostrictive probes. They rarely explain which configuration fits your station. This guide cuts through the noise.
You will learn how automatic tank gauge leak detection works, what EPA and international standards require, and how to choose between CSLD and SLD test modes. You will also see how to integrate an ATG system with your fuel management setup, plus realistic cost ranges and a procurement checklist for your next project.
How Does Automatic Tank Gauge Leak Detection Work?

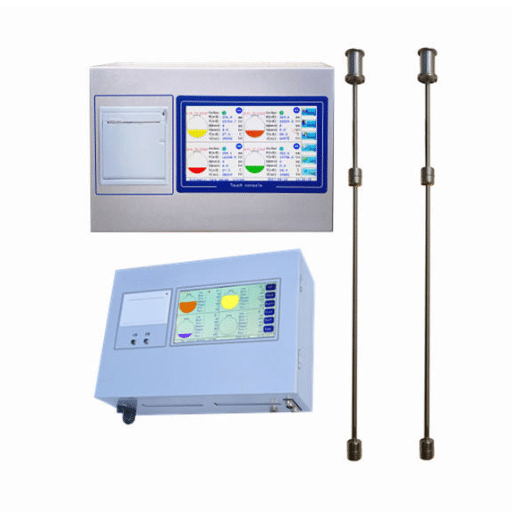

An automatic tank gauge (ATG) system is an electronic monitoring platform. It measures fuel level and temperature inside a storage tank, calculates volume, and flags unexpected losses that could indicate a leak. This replaces manual dipstick readings with continuous, precise data collection.
A probe installed in the tank measures the product surface level and the temperature at multiple points. The console receives this data and compensates the volume for thermal expansion or contraction. It then compares the calculated volume against expected values from deliveries and dispenser sales. If the system detects a loss that exceeds its programmed threshold, it triggers an alarm.
Temperature compensation matters. Fuel expands and contracts with temperature changes. Without compensation, a cool morning could look like a leak, or a warm afternoon could hide one. Modern probes use multi-point temperature sensors to keep the volume calculation accurate across the full fuel column.
The Magnetostrictive Probe
The probe is the heart of most ATG systems. Magnetostrictive probes send a short pulse down a waveguide wire inside a vertical stem. When the pulse passes a magnetic float, the interaction creates a return signal. The console measures the time delay and converts it into a precise level reading.
This technology delivers accuracy to within about ±2 mm. That precision is why it has become the industry standard for retail fuel stations. Probes are typically ordered to match tank height, with common lengths ranging from 600 mm to 4,500 mm. They can also carry separate floats for product and water, so the system can detect water accumulation at the tank bottom as well as fuel loss.
The Console and Software
The console is the brain of the ATG system. It collects probe data, runs leak-detection algorithms, manages alarms, and generates compliance reports. Consoles can monitor one tank or a dozen, depending on the model.
Key console functions include:
- Inventory tracking and delivery confirmation
- Leak-test scheduling and logging
- Alarm management for high/low level, high water, leak detection, and equipment faults
- Communication via RS232, RS485, Ethernet, or cellular links
- Compliance reporting with automatic 30-day test logs
The console is also where you select the leak-detection mode. That choice, static or continuous, has a bigger impact than most buyers realize.
Static vs Continuous Leak Detection: Choosing the Right Mode
ATG systems detect leaks using one of two main methods: Static Leak Detection (SLD) or Continuous Statistical Leak Detection (CSLD). Understanding the difference is the most important step in specifying a system.
Static Leak Detection (SLD)
SLD runs a dedicated leak test during a quiet period, usually overnight. The tank must be idle: no dispensing, no deliveries, and minimal temperature disturbance. The system watches for volume changes over a set period, often one to five hours depending on fuel height and tank size.
SLD is typically certified at either 0.1 gph or 0.2 gph sensitivity. It is reliable and well understood by regulators. The downside is operational: you need predictable idle windows, and the test can fail if a late-night delivery or emergency fueling interrupts the cycle.
Continuous Statistical Leak Detection (CSLD)
CSLD works differently. It gathers data continuously during normal operations. Statistical algorithms separate real losses from normal dispensing fluctuations. When the system accumulates enough clean data, it declares a leak status automatically.
CSLD is certified to the same 0.2 gph standard as SLD. Some systems report higher statistical confidence with very low false-alarm rates. The major advantage is convenience. Tests run without taking the tank out of service, which makes CSLD ideal for 24-hour sites, high-throughput stations, and manifolded tanks.
The trade-off is complexity. CSLD needs more data history and more careful configuration. It sometimes requires a software license. A poorly configured CSLD system can generate nuisance alarms that undermine operator confidence.
Decision Framework: SLD or CSLD?
| Station Profile | Recommended Mode | Reasoning |
|---|---|---|
| Small/low-throughput with predictable night hours | SLD | Lower cost; quiet periods are easy to find |
| Medium/high-throughput retail station | CSLD | Avoids scheduling conflicts and missed tests |
| 24-hour operation or fleet depot | CSLD | No reliable idle window for SLD |
| Manifolded tanks | CSLD | SLD cannot test manifolded tank systems effectively |
| High-risk site or sensitive environment | CSLD or 0.1 gph SLD | Tighter detection improves response time |
When operators ask us which mode is “better,” the honest answer is that the right mode depends on how the station actually runs. A mid-tier console with CSLD properly configured will outperform a premium console left in basic inventory mode.
What Does the 0.2 GPH Leak Detection Standard Mean
Under EPA regulations for underground storage tanks (40 CFR Part 280), ATG systems must detect a leak of at least 0.2 gallons per hour. The system must also meet a 95% probability of detection and no more than a 5% false alarm rate. That standard has become the baseline for ATG certification in the United States.
To put 0.2 gph in perspective, a leak at that rate for a full year would release roughly 1,750 gallons of fuel. That is enough to trigger a major cleanup. The standard exists because smaller leaks are hard to distinguish from normal operational variation. Larger leaks create unacceptable environmental risk.
Some systems offer 0.1 gph sensitivity. This exceeds the EPA minimum and is often used for annual tightness testing. It also suits sites where early detection justifies the higher equipment cost. A 0.1 gph system may require upgraded probes, specialized floats, or additional software licensing. For routine monthly compliance, 0.2 gph is sufficient. For high-risk sites or premium monitoring, 0.1 gph adds an extra safety margin.
ATG System Components and Key Features
When evaluating an automatic tank gauging system, look beyond the brand name. Focus on whether the components match your tanks and operational requirements.
Probe Selection
- Length: Must match tank height plus riser configuration
- Material: Stainless steel or corrosion-resistant alloys for long service life
- Float type: Product-only, product + water, or specialty floats for ethanol blends or diesel
- Accuracy: ±2 mm typical for magnetostrictive probes
- Hazardous area rating: Intrinsically safe or explosion-proof certification for the target market
Console Capacity
- Tank count: current and future expansion
- Communication ports: RS232, RS485, Ethernet, Wi-Fi, cellular
- Protocol support: Modbus, proprietary formats, or API integration
- Alarm outputs: relay contacts, sirens, SMS, email, or app notifications
- User interface: touchscreen, keypad, or remote software access
Software and Reporting
- Automatic 30-day leak-test logs
- Inventory reconciliation reports
- Water-in-tank alerts
- Sensor status and diagnostic reports
- Compliance archive for inspections
Certifications
- EPA third-party certification for leak detection performance
- UL listing for electrical safety in the United States
- ATEX or IECEx for sensors in European hazardous areas
- Local approvals such as China GB standards for export projects
Regulatory Compliance and Testing Requirements
ATG leak detection is one of seven release-detection methods approved by the EPA for underground storage tanks. The others include interstitial monitoring, vapor monitoring, groundwater monitoring, statistical inventory reconciliation, manual tank gauging, and tank tightness testing.
Monthly Monitoring
Owners must ensure the ATG performs a leak test at least every 30 days. The system should produce a printed or archived record showing the test result, date, and any alarms. Modern consoles can email or store these reports automatically.
Annual Equipment Testing
Since October 13, 2018, federal regulations require annual testing of mechanical and electronic release-detection equipment. This includes verifying probe accuracy, alarm function, battery backup, and communication paths. Keep test records for at least three years.
Post-2016 Tanks
For USTs installed or replaced after April 11, 2016, the EPA requires secondary containment with interstitial monitoring. ATG can still be used as a valuable supplemental layer for inventory control and leak detection. It cannot, however, be the sole primary release-detection method for these tanks.
International Standards
Requirements vary outside the United States. The European Union emphasizes ATEX or IECEx certification for equipment used in potentially explosive atmospheres. In China, GB50156-2021 sets requirements for fuel station design and monitoring integration. Always confirm the local regulatory framework before specifying equipment for an international project.
Integrating ATG with Fuel Management Systems
An ATG system becomes far more valuable when it shares data with the station’s fuel management system, point-of-sale system, and back-office software. Integration enables automated inventory reconciliation, delivery verification, and real-time alerts.
Common integration paths include:
- RS485/Modbus: reliable, long-distance communication between probes and consoles
- Ethernet/TCP-IP: modern consoles connect directly to site networks
- API or file exports: back-office systems pull inventory and alarm data on schedule
- Cloud dashboards: remote monitoring across multiple sites from a single login
The most common integration failure is a protocol mismatch. A buyer purchases an ATG console that outputs data in a proprietary format. Later, they discover the fuel management system cannot read it. Avoiding this requires a simple pre-purchase check: confirm the communication protocol and data format on both sides before placing the order.
Mini-scenario:Â Maria, a project integrator in Southeast Asia, specified a low-cost ATG console for a new retail station. After installation, the station’s fuel management software could not import the console’s delivery logs. The integrator spent three weeks and $2,400 on a custom middleware adapter. A five-minute protocol check before procurement would have prevented the delay.
ATG Costs and Procurement Guide
ATG pricing varies widely based on features, certification level, and installation complexity. The table below gives realistic ranges for planning purposes.
| Cost Category | Entry-Level | Mid-Tier | Premium |
|---|---|---|---|
| Hardware per tank | $500–$1,500 | $3,000–$8,000 | $10,000+ |
| Installation per site | $500–$1,500 | $1,500–$3,000 | $3,000–$6,000 |
| Software/licenses | Basic included | CSLD + remote monitoring | Enterprise dashboard + multi-site |
| Annual calibration/testing | $300–$500 | $500–$800 | $800–$1,500 |
Entry-level systems from Chinese OEMs work well for simple single-tank monitoring. Mid-tier commercial systems balance reliability, support, and integration options. Premium systems include advanced line leak detection, enterprise reporting, and dedicated service contracts.
Procurement Checklist
Use this checklist when requesting ATG quotes:
- Confirm tank height, diameter, and manifold arrangement
- Choose SLD or CSLD based on station throughput and idle windows
- Verify required sensitivity: 0.2 gph for routine compliance, 0.1 gph for enhanced monitoring
- Match console capacity to current tank count plus planned expansion
- Confirm communication protocol compatibility with existing fuel management systems
- Specify hazardous area certification for the target market
- Request compliance verification documentation from the manufacturer
- Ask about after-sales support, spare parts availability, and calibration service
Mini-scenario:Â James runs a small fleet depot with two underground diesel tanks and predictable overnight shutdowns. He chose an SLD-based ATG at 0.2 gph sensitivity. The system runs its test automatically every night, produces a monthly report for the regulator, and cost less than $4,000 installed. For his quiet, low-throughput site, CSLD would have added cost without adding value.
Maintenance Best Practices for Reliable Leak Detection
Even the best ATG system will fail to protect a station if it is not maintained. Follow these practices to keep the system accurate and compliant.
- Run the ATG in leak-test mode at least monthly. Verify the result.
- Keep calibration and maintenance records for at least three years.
- Test alarm outputs, battery backup, and communication paths annually.
- Inspect probes and floats for corrosion, fouling, or mechanical damage.
- Respond to leak alarms immediately. Investigate before resetting.
- Reduce false alarms by configuring thresholds correctly and avoiding unnecessary sensor movement.
A well-maintained ATG should run quietly in the background. It should alert operators only when something genuinely needs attention. For a compliance checklist you can use immediately, see our UST compliance requirements guide.
Frequently Asked Questions
How does automatic tank gauge leak detection work?
An automatic tank gauge leak detection system measures fuel level and temperature inside a tank, calculates the compensated volume, and compares it against expected values from deliveries and dispenser sales. If an unexpected loss exceeds the system’s threshold, it triggers an alarm.
What is the difference between CSLD and SLD?
Static Leak Detection (SLD) runs a dedicated test during an idle period, while Continuous Statistical Leak Detection (CSLD) analyzes data continuously during normal operations without requiring a long shutdown. CSLD suits 24-hour and high-throughput sites; SLD is simpler and lower cost for stations with predictable quiet periods.
What is the 0.2 gph leak detection standard?
The EPA requires ATG systems to detect a leak of at least 0.2 gallons per hour with 95% probability of detection and no more than a 5% false alarm rate. This is the federal minimum standard for monthly leak detection on underground storage tanks.
Can ATG be used as the only leak detection method?
For tanks installed before April 11, 2016, ATG can serve as the primary release-detection method if it meets EPA performance standards. For tanks installed or replaced after that date, secondary containment with interstitial monitoring is required, and ATG can only be used as a supplemental layer.
What certifications should an ATG system have?
At minimum, look for EPA third-party leak-detection certification, UL or equivalent electrical safety listing, and local hazardous area approvals such as ATEX/IECEx for Europe or GB standards for China.
Conclusion
Automatic tank gauge leak detection is the most widely deployed monitoring layer for underground fuel storage. It combines precise inventory measurement with regulatory compliance. Station owners get early warning before a small issue becomes a costly release.
The key to success is matching the configuration to the site. Choose SLD when you have predictable idle windows and want a straightforward, lower-cost solution. Choose CSLD when you operate continuously, run high throughput, or manage manifolded tanks. Always verify communication protocols with your fuel management system. Confirm local certification requirements and budget for annual maintenance.
If you are planning a new fuel station or upgrading leak detection on an existing site, our engineering team can help. We will specify the right ATG configuration for your tanks and compliance environment. Contact us for a technical assessment or request a customized quote.
