Elena spread three quotes across her desk, all labeled “fuel dispenser,” and realized none of them described the same machine. The first was a conventional gasoline unit at a familiar price. The second was a CNG dispenser rated for 250 bar. The third was a hydrogen fuel dispenser that cost more than her first depot’s entire forecourt. Her fleet was moving to alternative fuels, and the hardware looked similar while everything underneath it, from pressure to metering to safety code, was different.
If you are comparing alternative-fuel options, you have probably hit the same wall. Spec sheets assume you already speak the language of pressure classes, T-ratings, and mass flow. This guide teaches you that language.
You will learn how hydrogen, CNG, and LNG dispensers actually work, what the key specifications mean, which safety codes apply to each fuel, and how to match a dispenser to your fleet’s duty cycle. A side-by-side comparison table and an honest cost-phasing framework are included. If you want the fundamentals of conventional units first, our complete guide to fuel dispensers is a useful companion.
What Makes Alternative-Fuel Dispensers Different
A hydrogen fuel dispenser is a high-pressure gas metering and delivery system that transfers compressed hydrogen safely into a vehicle tank, typically at 350 or 700 bar. Unlike a gasoline dispenser, it manages extreme pressure, pre-cooled fuel, and live vehicle communication during every fill.
Three engineering realities separate alternative-fuel dispensers from conventional units:
- Fuel state. CNG and hydrogen are compressed gases, while LNG is a cryogenic liquid near -162 °C. None of them behaves like a pumpable liquid.
- Mass, not volume. Gas volume shifts with pressure and temperature, so these dispensers measure mass directly. Coriolis mass flow meters are the shared standard, reaching accuracy around 0.1%.
- Pressure management. The dispenser must control the pressure ramp rate and final shutoff precisely to keep the vehicle tank within its temperature and pressure limits.
Conventional hardware cannot simply be repurposed. Hydrogen demands 99.99% fuel purity and materials that resist hydrogen embrittlement, so oil-free compression and specialized alloys come standard. LNG requires vacuum-jacketed lines and cryogenic-rated components. The dispenser you buy is defined by the fuel it serves.
Comparing quotes for an alternative-fuel project? A short consultation can confirm which fuel and dispenser class fits your duty cycle before you commit. Talk to our technical team for a no-obligation assessment.
Hydrogen Fuel Dispensers: Pressure Classes and Protocols
Two pressure classes dominate hydrogen dispensing. H35 serves heavy-duty vehicles at 35 MPa nominal, while H70 serves passenger fuel-cell cars at 70 MPa. The hardware is keyed so the two cannot cross-connect.
| Class | Nominal pressure | Max operating pressure | Typical vehicles |
|---|---|---|---|
| H35 | 35 MPa (350 bar) | 43.8 MPa | Buses, trucks, forklifts |
| H70 | 70 MPa (700 bar) | 87.5 MPa | Passenger fuel-cell cars |
Temperature ratings matter just as much. A T40-rated dispenser pre-cools hydrogen to -40 °C before delivery, which is what makes a three-to-five-minute passenger fill possible without overheating the tank. T30 and T20 units cool less aggressively and fill more slowly. High-flow light-duty dispensers deliver around 3.6 kg per minute, with heavy-duty variants reaching 5.4 to 7.2 kg per minute.
The fill itself is choreographed by SAE J2601, the protocol that sets fuel delivery temperature, flow rate, and pressure ramp rate. As research explains, the dispenser adjusts the ramp continuously so the vehicle tank stays inside safe limits. SAE J2799 adds an optional infrared data link that lets the vehicle report its own temperature and pressure during the fill. For trucks and buses, the newer SAE J2601-5 extension defines flow classes up to FM300.
Metering closes the loop. A hydrogen fuel dispenser totals kilograms through a Coriolis mass flow meter, and that measurement must satisfy legal-for-trade verification wherever hydrogen is sold retail. The intervals in our fuel dispenser calibration guide apply here just as they do for liquid fuels.

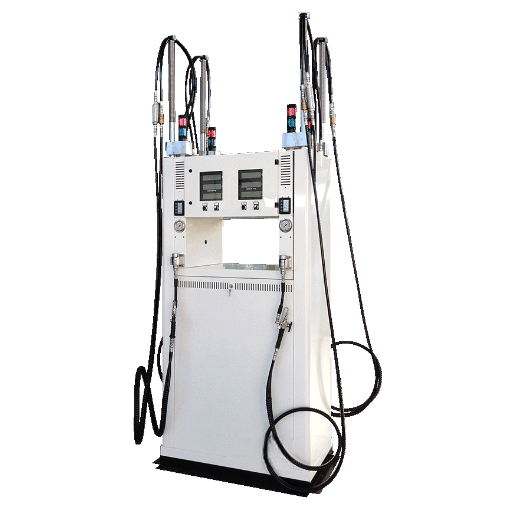

CNG Dispensers: Sequenced, Temperature-Compensated Fills
CNG is the mature option in this group, and it shows. A CNG dispenser operates around 200 to 250 bar at the nozzle, uses standardized NGV1 coupling hardware, and meters by Coriolis mass flow just like hydrogen. Displays typically read in kilograms or gasoline gallon equivalents (GGE) for retail sale.
The signature feature is three-bank cascade sequencing. Fast-fill stations store gas in low-, medium-, and high-pressure banks. The dispenser draws from the low bank first, then the medium, then the high, which fills the vehicle quickly while keeping compressor workload low. Temperature compensation adjusts the target pressure upward during fast fills, so the tank is genuinely full after the gas cools and contracts.
Fleet buyers should also distinguish the two operating modes:
- Fast-fill mirrors the retail experience, filling a vehicle in minutes for transit and public stations.
- Time-fill fills vehicles slowly overnight, suiting return-to-base fleets like refuse trucks and school buses with far cheaper infrastructure.
For regional fleets with pipeline gas access, CNG remains the lowest-cost entry into alternative fuels.
LNG Dispensers: Cryogenic Fueling for Heavy Duty
LNG takes a different path. The fuel is stored as a cryogenic liquid at roughly -162 °C, so an LNG dispenser is a cryogenic instrument built with vacuum-jacketed lines, insulated meters, and careful thermal management from storage to nozzle.
Metering runs on the same Coriolis principle, but the display reads in diesel gallon equivalents (DGE) so fleet managers can compare directly against diesel. Combination LNG and CNG stations deliver up to roughly 23 DGE per minute on the LNG side, which keeps a long-haul truck’s stop close to diesel timing. Real-time density measurement keeps that metering honest as tank conditions shift.
Saturation management is the discipline unique to LNG. As LNG warms, its pressure rises and fuel quality changes, so the station manages saturation continuously to deliver liquid at a state the vehicle tank can accept. Done well, the driver never notices; done poorly, it fills slowly and venting losses grow.
LNG earns its place in long-haul heavy-duty trucking, where range and onboard fuel weight rule out CNG. Around 89% of LNG station demand comes from heavy-duty vehicles, which tells you exactly who this fuel serves.
Hydrogen vs CNG vs LNG: Side-by-Side Comparison
The table below consolidates the essentials for buyers comparing all three.
| Factor | Hydrogen | CNG | LNG |
|---|---|---|---|
| Fuel state | Compressed gas | Compressed gas | Cryogenic liquid |
| Pressure / temperature | 350-700 bar, pre-cooled | 200-250 bar | Low pressure, ~-162 °C |
| Metering | Coriolis mass (kg) | Coriolis mass (kg or GGE) | Coriolis mass (DGE) |
| Typical fill time | 3-5 min (car), ~10 min (bus) | Minutes fast-fill, hours time-fill | Close to diesel timing |
| Primary vehicles | Fuel-cell cars, buses, trucks | Transit, refuse, regional fleets | Long-haul heavy trucks |
| Primary codes | NFPA 2, ISO 19880, SAE J2601 | NFPA 52 | NFPA 52 |
| Station cost band | Highest (chiller, compression) | Moderate (compressor, storage) | High (cryogenic storage) |
Kenji, who operates a regional CNG network, learned the hardware relationship firsthand when he added hydrogen at one flagship site. The compressed-gas architecture carried over: storage cascade, dispenser layout, Coriolis metering. Three things did not. Pressure ratings more than doubled, compression went oil-free to protect fuel purity, and a chiller arrived for pre-cooling. His summary was blunt: a CNG station is the best starting point for hydrogen, but the dispenser itself is a new class of machine.
Safety Systems and Codes for Alternative-Fuel Dispensers
All three fuels share a safety backbone. Breakaway couplings protect against drive-offs, emergency shutdown systems cut flow on fault, leak detection watches for escapes, and venting paths route gas away safely. Nozzles are keyed by standard so the wrong fuel cannot connect: ISO 17268 and SAE J2600 for hydrogen, NGV1 for CNG.
The details diverge in instructive ways. Hydrogen dispensers trip overpressure protection at about 1.38 times nominal working pressure under NFPA 2, while CNG uses 1.25 times service pressure under NFPA 52. Hydrogen’s wide flammability range and tiny molecule also drive stricter leak detection and ventilation design than natural gas.
| Fuel | Primary codes and standards |
|---|---|
| Hydrogen | ISO 19880 series, NFPA 2, SAE J2600/J2601/J2799, ISO 17268 |
| CNG | NFPA 52, NGV1 fueling connection standards |
| LNG | NFPA 52 vehicular fueling, cryogenic component standards |
The ISO 19880-2 dispenser standard is the reference most hydrogen buyers will encounter, covering dispenser safety requirements up to the H70 class. Electrical components in classified zones still need hazardous-area ratings regardless of fuel, which our explosion-proof fuel dispensers guide covers in detail.
Design, installation, and commissioning belong to qualified engineers working to the current code edition. The commissioning discipline in our fuel dispenser installation guide applies to alternative fuels with even less room for shortcuts.
Choosing the Right Dispenser for Your Fleet
The right choice starts with the fleet, not the hardware. Weigh these factors before you compare quotes:
- Fleet size and growth, since five vehicles and fifty justify very different infrastructure.
- Duty cycle, because return-to-base routes favor CNG or time-fill while long-haul favors LNG.
- Fuel availability and price in your region, which often decides the economics by itself.
- Peak throughput, measured in fills per hour at your busiest window.
- Expansion path, because a multi-fuel future is easier to plan now than to retrofit later.
Hydrogen economics reward phasing. Industry fleet guidance shows a typical progression: a demo fleet of around five buses runs about $1 million in infrastructure at $10 to $12 per kg, a pilot of five to twenty buses moves to liquid storage at $6 to $9 per kg, and commercial scale beyond twenty buses approaches $3 to $6 per kg. The U.S. DOE fleet guidance makes the same point: match storage and dispensing scale to real demand, or boil-off losses eat the savings.
Marisol, a transit fleet manager, followed exactly that path. Her agency started with a tube-trailer demo fueling five buses at nearly $11 per kg. Eighteen months later, with twenty-four buses on liquid storage, her delivered cost fell under $6 per kg and fills stayed under ten minutes. Phasing lets her board approve each step on real operating data instead of projections.
Mobile and skid-mounted dispensers work well as a bridging strategy for early fleets. Our guide to skid-mounted gas station capacity selection covers that route, and how to choose a fuel dispenser covers the conventional criteria that still apply.
Ready to scope your project? Share your fleet size, duty cycle, and region, and we will recommend a dispenser configuration with honest cost bands. Request an alternative-fuel consultation or compare dispenser models to see the range.
Market Trends: Multi-Fuel and Multi-Energy Hubs
Hydrogen dispensing is the fastest-growing equipment segment in fuel retail, forecast at roughly 116.5% CAGR through 2030 as government corridor funding lands, including Europe’s push for a hydrogen station every 200 kilometers. LNG infrastructure grows steadily at about 8.3% CAGR on heavy-duty demand, while CNG expands with transit and refuse fleets, especially across Asia-Pacific.
Two trends matter more than any single fuel’s growth. First, blending is arriving: renewable natural gas in CNG networks and early hydrogen blending pilots in gas grids. Second, the multi-energy hub is becoming the default forecourt model, combining conventional fuels, gas, hydrogen, and charging on one site. China’s station consolidation is accelerating that shift, pushing surviving sites to serve every energy type.
Connected sites manage this complexity through smart fuel dispensers that unify reporting across fuels and feed one dashboard. Whatever fuel you choose first, specify hardware and controls that will not box you out of the second.
Frequently Asked Questions
What is the difference between H35 and H70 hydrogen dispensers?
H35 dispenses at 35 MPa nominal and serves buses, trucks, and forklifts. H70 dispenses at 70 MPa and serves passenger fuel-cell cars. The nozzles and receptacles are keyed differently, so the two cannot cross-connect.
How does a hydrogen fuel dispenser meter fuel?
It measures mass directly with a Coriolis mass flow meter because gas volume shifts constantly with pressure and temperature. The controller totals kilograms dispensed while enforcing the fueling protocol’s safety limits.
Can one dispenser handle both hydrogen and CNG?
Not through one fueling path. Hydrogen needs higher pressure ratings, oil-free compression, pre-cooling, and embrittlement-resistant materials. A site can host both fuels and share some architecture, but the dispenser hardware is fuel-specific.
What pressure does a CNG dispenser use?
Roughly 200 to 250 bar at the nozzle, drawn through cascaded low, medium, and high-pressure storage banks to keep fills fast and compressor loads low.
How much does a hydrogen fueling dispenser cost?
The dispenser is only part of the station cost. Full hydrogen stations range from about 1 million for a small demo set up to3 to $5 million or more at commercial scale, with per-kilogram fuel cost falling as throughput rises.
Which alternative fuel is best for my fleet?
Match the fuel to the duty cycle. CNG suits return-to-base regional fleets, LNG suits long-haul heavy trucks, and hydrogen suits fleets that need fast fills and zero tailpipe emissions where supply exists.
Conclusion
Choosing an alternative-fuel dispenser comes down to four habits: match the fuel to your duty cycle, read pressure classes and protocols before comparing quotes, respect the codes that govern each fuel, and plan for a multi-fuel future.
Keep these takeaways in view:
- Hydrogen fuel dispensers run at 350 or 700 bar with pre-cooling and SAE J2601 protocols.
- CNG is the mature, lower-cost option built on sequenced cascade fills.
- LNG serves long-haul heavy-duty with cryogenic DGE metering.
- Coriolis mass flow metering is the shared standard across all three fuels.
- Safety codes differ by fuel, so never repurpose conventional hardware.
