A stainless steel tank that rusts where it was welded is rarely a material failure. It is a fabrication failure. At a coastal fuel depot, a 316L diesel tank developed rust-coloured “islands” near a weld repair within a season. The grade was right. The weld had been ground with a carbon-steel wheel, the heat tint was left in place, and nobody passivated the surface. The tank’s strongest area, its seam, became its weakest.
That is why stainless steel fuel tank fabrication deserves more scrutiny than a material spec sheet. Stainless resists corrosion through a chromium oxide film only nanometres thick, and welding can damage both the film and the metal beneath it. Done properly, fabrication preserves that resistance for decades; done carelessly, it delivers a tank that corrodes and fails early.
In this guide to stainless steel fuel tank fabrication and welding, you will learn:
- Which grades and fabrication standards apply to fuel tanks
- Why filler metal, shielding gas, and argon back-purging matter
- What non-destructive testing (NDT) proves a stainless tank is sound
- The quality documents to demand from any fabricator
If you are early in the buying process, start with our complete guide to stainless steel fuel tanks to settle grade and application first. This article covers what happens in the shop after that decision.
Why Welding Stainless Steel Is Different from Carbon Steel
Austenitic stainless, the 304 and 316 family used for most fuel tanks, behaves differently under the arc in three ways that affect tank quality.
Heat concentrates. Stainless conducts roughly a third as much heat as carbon steel, so heat builds in a tight zone, and the weld and heat-affected zone (HAZ) get hotter and stay hot longer.
The metal moves more. Austenitic stainless expands about 1.5 times more than carbon steel, producing more distortion and residual stress unless heat input and weld sequence are controlled.
The material is non-magnetic. That matters later: austenitic stainless cannot be inspected with magnetic particle testing, a point many buyers (and some suppliers) get wrong.
Sensitization. When stainless is held near 425–850°C, carbon combines with chromium at grain boundaries, stripping it from surrounding metal and leaving the HAZ vulnerable to intergranular corrosion, “weld decay.” Low-carbon “L” grades (304L, 316L) limit that carbon, which is why they are specified for welded fuel tanks.
Heat tint and chromium depletion. The coloured oxide on a weld (gold, blue, purple, grey) is not cosmetic. It forms as surface chromium oxidizes, depleting the layer beneath. That chromium-depleted zone is electrochemically active and will pit and rust if left in place. The darker the tint, the deeper the damage.
Hot cracking. Fully austenitic weld metal can crack as it solidifies without a controlled amount of ferrite, a function of filler selection, covered below.
Carbon steel fails mainly from corrosion and poor root fusion; stainless fails from weld damage to its protective chemistry, so the two follow different codes. We cover the carbon steel path in our carbon steel tank welding standards guide.
Stainless Steel Grades for Welded Fuel Tanks
The grade sets the ceiling for corrosion resistance; fabrication decides how much of it you get. For welded fuel tanks, three grades dominate.
| Grade | Max carbon | Molybdenum | Best service | Typical fuel use |
|---|---|---|---|---|
| 304L | 0.03% | None | Low-chloride, dry | Gasoline, clean diesel |
| 316L | 0.03% | ~2–3% | Chlorides, coastal, aggressive blends | Biodiesel, ethanol, marine, jet fuel |
| Duplex 2205 | 0.03% | ~3% | Strongest chloride resistance | Aggressive chemical / brine service |
The “L” matters more than most buyers realize. Standard 316 allows up to 0.08% carbon; 316L limits it to 0.03%. In welded construction, that is the difference between a weld zone that stays corrosion-resistant and one that sensitizes during welding. If a supplier quotes “316” plate for a welded tank, confirm they are delivering the low-carbon grade on the mill certificate, not the sales sheet.
For diesel, gasoline, biodiesel, and jet fuel storage, 304L and 316L cover nearly all applications. Our 304 vs 316 stainless steel fuel tanks guide compares them. Plate is specified to ASTM A240, the composition and mechanical standard for stainless plate. Whatever you choose, insist on certified plate with full material traceability; you cannot weld your way out of a wrong grade.

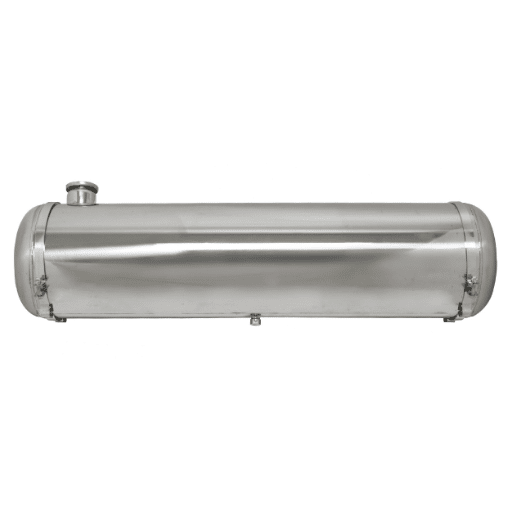

Key Fabrication Standards for Stainless Steel Fuel Tanks
No single code covers every stainless fuel tank. A family of standards applies depending on size, pressure, location, and jurisdiction, and a reputable fabricator will tell you which apply to your tank.
| Standard / Code | Scope | Relevance to stainless fuel tanks |
|---|---|---|
| ASME Section VIII | Pressure vessels | Design/fabrication for pressurized tanks |
| ASME Section IX | Welding qualifications | Qualifies WPS, PQR, and welders |
| API 650 | Large atmospheric tanks | Shell, bottom, roof, and NDT rules |
| UL 142 | Steel aboveground tanks | Shop-fabricated flammable/combustible tanks |
| AWS D1.6 | Structural welding – stainless | Stainless structural acceptance criteria |
| ASTM A240 / A262 | Plate material / intergranular attack | Base plate spec + sensitization testing |
| ASTM A380 / A967 | Pickling & passivation | Practice vs enforceable specification |
| ISO 3834 / EN ISO 15614-1 | Welding quality management | Shop quality system + procedure qualification |
| GB/T 150 / GB50156 | China vessels / fuel stations | Chinese codes when sourcing from China |
| ABYC H-33 | Marine fuel systems | See our marine stainless tank guide |
Two points matter most to buyers.
First, welding qualification is where quality is proven. ASME Section IX and EN ISO 15614-1 exist so every weld is made to a qualified Welding Procedure Specification (WPS), backed by a Procedure Qualification Record (PQR), and performed by welders with current performance qualifications (WPQ). A shop certified to ISO 3834 runs a documented welding-quality system around it.
Second, post-weld chemistry is specified, not assumed. ASTM A380 explains how to clean, descale, and passivate; ASTM A967 is an enforceable specification with verification tests. If you want a tank that will not rust at the seams, your contract should call out passivation to A967, not just say “passivated.”
Most stainless steel diesel storage tanks are atmospheric and shop-fabricated, so UL 142 and the ASTM material standards dominate; large farm and depot tanks may fall under API 650, and aviation tanks add fuel-handling rules covered in our jet fuel storage tank guide.
Welding Processes Used in Stainless Steel Fuel Tank Fabrication
Fabricators choose a process by thickness, joint type, and required purity.
- GTAW (TIG) is the default for stainless fuel tanks, especially thin shells and root passes, for its precise heat and filler control. Top shops automate it: leading aviation-tank fabricators seam-weld stainless plate with automatic cold-wire GTAW qualified to 100% X-ray quality — the benchmark to ask about.
- GMAW/FCAW adds filler faster for heavier shells but puts more heat in, so shielding control is critical.
- SAWÂ covers long shell seams on large tanks, often on robotic lines in ISO 3834-certified shops.
- Orbital, plasma, and laser welding cut heat input for precision and light-gauge marine work.
Whatever the process, structural seams should be full-penetration welds, with fit-up that lets the root weld cleanly. Thin tanks add baffles: more welds facing fuel, and more corrosion sites if the controls below are ignored.
Filler Metal, Shielding Gas & Back-Purging
Welding stainless correctly is as much about protecting hot metal from air as about the arc.
Filler metal. Match the filler to the base grade, or slightly over-alloy it: ER308L for 304/304L, ER316L for 316/316L. Low-carbon filler preserves corrosion resistance at the weld. Filler also controls ferrite content: weld metal needs roughly 3 FN (Ferrite Number) minimum to resist hot cracking, with typical specs at 3–20 FN (3–10 FN in sour service). A fabricator who cannot state the ferrite number in their WPS has an incomplete stainless procedure.
Shielding gas. Pure argon, ideally through a gas lens with a correctly sized cup, protects the weld face; nitrogen pickup and poor coverage degrade the weld and reduce ferrite.
Back-purging: the step buyers should never let a supplier skip. The weld root is the inside surface that will sit against fuel for decades. If air reaches that hot root, it oxidizes into “sugaring”: a rough, dark oxide that ruins corrosion resistance and traps contaminants. The fix is to fill the joint or tank with inert argon before welding, so the root solidifies clean and bright. A common shop rule of thumb: feed argon at roughly 12 L/min for about 30 seconds per litre of internal volume to displace air, then about 8 L/min while welding, venting at a high point. Start the purge well before the arc strikes.
If diesel storage is your main concern, our stainless steel diesel storage tank guide covers specifications and standards in more detail.
Controlling Heat, Distortion & Contamination
Three shop disciplines separate certified stainless fabricators from general metal shops.
Heat control. Low heat input keeps the HAZ out of the sensitization range and limits heat tint. Welders establish the puddle quickly and move, keep interpass temperature low, and often use chill bars to pull heat away. Automation does all of this more consistently than manual welding.
Distortion control. Because stainless expands a lot and conducts little heat, thin shells warp easily. Fabricators manage this with tacking strategy, balanced weld sequence, and fixturing; excessive distortion signals uncontrolled heat.
Contamination control: the most common hidden cause of rust. Stainless picks up free iron from carbon-steel grinding dust, brushes, clamps, and shared work surfaces; that iron rusts, and the rust spreads as the passive layer is breached. Serious fabricators run a dedicated stainless production bay with segregated tooling. If a shop runs carbon steel and stainless on the same floor with the same tools, your tank is at risk before the first weld.
Heat tint is a quality signal. Gold means light oxidation; blues, purples, and greys mean thicker oxide and deeper chromium depletion. Quality shops grind it back to bright metal with stainless-only abrasives, then chemically treat the surface. Left in place, heat tint is a corrosion starter.
Post-Weld Treatment: Pickling, Passivation & Surface Finish
The correct sequence after welding is weld → grind (stainless abrasives) → pickle → passivate.
Pickling removes heat tint and the chromium-depleted layer beneath it. Passivation removes free iron and rebuilds the chromium oxide film. They are different steps: passivation cannot remove heat tint, and pickling alone does not rebuild a uniform passive layer. The governing references are ASTM A380/A967; citric-acid methods increasingly replace hazardous nitric treatments.
Surface finish matters too. As-welded or 2B finishes suit many industrial tanks, but aviation and some marine fuels demand smoother, cleanable surfaces that resist water and microbial growth. Our stainless steel fuel tank passivation and maintenance guide covers the treatment in full, and our jet fuel storage tank guide details aviation finish requirements, so we keep the chemistry brief here.
Non-Destructive Testing (NDT) for Stainless Steel Welds
NDT proves a weld is sound before the tank holds fuel. For stainless, the method choice matters, and one common error is worth calling out.
| Method | What it detects | Works on austenitic stainless? |
|---|---|---|
| Visual (VT) | Surface profile, undercut, porosity, heat tint | Yes, always the first step |
| Liquid penetrant (PT) | Surface-opening cracks and pores | Yes, the correct surface test |
| Magnetic particle (MT/MPI) | Surface and near-surface cracks | No, not applicable |
| Radiographic (RT) / Ultrasonic (UT) | Internal volumetric defects | Yes |
| Leak / hydrostatic / pneumatic | Leaks and overall integrity | Yes |
| Ferrite measurement | Ferrite number of weld metal | Yes, when FN is specified |
Magnetic particle testing does not work on austenitic stainless steel. MT relies on magnetizing the component, and austenitic stainless is essentially non-magnetic, so no leakage field forms at a crack and the defect is missed. That is why liquid penetrant testing is the surface test for 304/316 welds, and why an MPI report on stainless, or a supplier who treats MT and PT as interchangeable, is a red flag.
A serious fabricator specifies the NDT plan before welding: VT on all welds, PT on critical surfaces, RT or UT on pressure-critical seams, and a hydrostatic or pneumatic test before shipping, each with dated, signed reports. Regulated and field-erected tanks warrant an independent third-party inspector (SGS, Bureau Veritas, Intertek, TÃœV) at witness points.
Quality Documentation & Traceability to Demand
The difference between a “stainless steel tank” and a defensible one is paperwork. Require this documentation before you sign, and again at delivery:
- Material test certificates for every plate, with heat numbers tracing composition (carbon, chromium, nickel, molybdenum) to the mill
- WPS and PQRÂ covering the exact grade, process, and joint type
- Welder performance qualifications (WPQ)Â with continuity for the welders on your tank
- NDT reports stating methods, coverage, and acceptance criteria
- Pickling and passivation records, including the named standard (ASTM A967 method) and verification results
- Hydrostatic or pneumatic test certificate
- A QA/QC data book compiling all of the above, the first thing inspectors and insurers ask for
If you source from China, verify certificates match your tank’s size and type (a company-level ISO 9001 certificate does not qualify a specific weld procedure), and confirm which national code applies alongside the international standard you specified: GB/T 150 for pressure vessels, GB50156 for fuel stations. A reputable manufacturer provides these documents and welcomes third-party inspection.
Fabricator Qualification Checklist
Evaluate any stainless tank fabricator, including us, against items you can verify, not claims you take on faith.
- Dedicated stainless production area with segregated tooling, brushes, and abrasives
- Certified plate with traceable mill certificates for the exact grade (ASTM A240)
- Current WPS/PQRÂ covering your grade, process, and joint types
- Welder qualification records with continuity for your job
- Written NDT plan with qualified inspectors and third-party witness points where relevant
- Inert-gas back-purging on sealed root passes, demonstrated on a sample joint
- Heat-tint control and stainless-only post-weld finishing
- Pickle and passivate to ASTM A967, with verification records
- Hydrostatic or pneumatic test before shipping
- Complete QA/QC data book delivered with the tank
Red flags:Â vague answers on ferrite number or back purge, MPI-only inspection reports for stainless, carbon-steel tools in the stainless work area, and “trust us” instead of documentation.
FAQ
Do stainless steel fuel tanks need back-purging when welded?
Yes. Any full-penetration weld on a sealed stainless tank must be back-purged with inert argon. Without it, oxygen reaches the hot weld root and forms “sugaring”, a rough oxide that destroys corrosion resistance on the inside surface where the fuel sits. The root must solidify clean and bright.
Why does stainless steel rust after welding?
Usually from one of four causes: heat tint left on the surface, carbon-steel contamination from shared tools or grinding dust, a mismatched or non-low-carbon filler, or skipped passivation. Stainless resists corrosion only while its chromium oxide layer is intact.
What is the best welding process for a stainless steel fuel tank?
GTAW (TIG) is the default because it offers the finest heat control and cleanest welds. Large shells use automated GTAW or submerged arc welding (SAW). Process matters less than heat input, shielding, and back-purge discipline.
Why is magnetic particle testing not used on stainless steel?
Magnetic particle testing requires a ferromagnetic material. Austenitic stainless steel (304/316) is essentially non-magnetic, so defects produce no leakage field and MT misses them. Liquid penetrant testing (PT) is the correct surface test for these grades.
What is the difference between pickling and passivation?
Pickling removes heat tint, weld scale, and the chromium-depleted layer beneath them using aggressive acid. Passivation removes free iron and rebuilds the protective chromium oxide film. The sequence for fuel tanks is weld, pickle, then passivate, usually to ASTM A967.
What grade of stainless steel is best for a fuel tank?
316L is the safest default: its molybdenum resists pitting, and its low carbon prevents sensitization during welding. 304L suits clean, low-chloride diesel and gasoline service. The right choice depends on fuel chemistry and site environment.
Conclusion
Stainless steel fuel tank fabrication does not fail because the metal is stainless. It fails because fabrication damage was left in place. Five things protect your investment: a low-carbon grade with certified plate, qualified welding procedures and welders, argon back-purging of every root pass, contamination and heat control in a dedicated stainless shop, and post-weld pickling and passivation to a named standard.
Before you buy:
- Confirm the grade and mill certificates, 316L at 0.03% max carbon, not just “316”
- Ask for the WPS, PQR, and welder qualifications, and read them
- Insist sealed root passes are back-purged, and heat tint is removed
- Verify the NDT plan uses PT, not MT, for austenitic surface testing
- Require passivation to ASTM A967 and a complete QA/QC data book at delivery
A stainless tank fabricated correctly is a lifetime asset; fabricated carelessly, it is an expensive liability. Fabrication quality is verifiable: the standards, tests, and documents above are how. For the cost picture, see our stainless steel fuel tank cost guide.
