A fuel tank is often described as a bomb waiting for a spark. That mental picture is wrong in one important way: the liquid fuel itself rarely ignites. The real hazard lives in the space above the fuel, where evaporated vapor mixes with air.
When the equipment manager at a West African mining site learned this the hard way, the problem was not the diesel in the tank. It was the vapor space, heated through a long afternoon and then exposed to static discharge during a routine top-up. The resulting flash cost the operation a month of downtime and forced a full rework of the fuel storage layout.
Engineers have developed several ways to manage that vapor hazard. One of the most effective is an explosion-proof fuel storage tank fitted with internal barrier technology, a conductive filler that sits inside the tank and stops an ignition from becoming an explosion. This guide explains how these tanks work, where they are worth the investment, and how to specify one correctly for your site.
By the end, you will understand the physics behind vapor-space explosions, the difference between barrier tanks and double-wall tanks, the standards that govern them, and the practical steps to size, configure, and maintain one.
What Is an Explosion-Proof Fuel Storage Tank?
An explosion-proof fuel storage tank is a vessel engineered to prevent an internal ignition from escalating into an explosion. In the type we cover in this guide, the tank shell is filled with a lightweight conductive barrier material that occupies the vapor space, so there is almost no room for an explosive fuel-air mixture to build up. Explore the product category and available capacities here.
It helps to separate three products that are often confused:
- Barrier fuel storage tanks use internal explosion-suppression filler to stop the vapor space from igniting. This guide focuses on these.
- Double-wall (SF) tanks provide secondary containment to stop leaks. They manage spills, not explosions.
- Fire-protected tanks such as UL 2085 listed units add insulation or concrete armor to survive external fire. They resist heat, not internal ignition.
All three solve real problems. The mistake is assuming one product does the job of another. A barrier tank and a double-wall tank can even be combined, giving you both explosion suppression and leak containment in a single vessel.
The Category Boundary Matters
Searching for “explosion-proof” equipment returns everything from light fittings to electrical enclosures. Those products carry a different meaning of the term. An Ex-rated light fitting is built so a spark inside the housing cannot escape. A barrier fuel storage tank is built so an ignition inside the tank cannot become a blast. Keep that distinction in mind when you compare products and quotes.
Why Fuel Tanks Explode
Before you can specify protection, you need to understand the hazard. A tank explosion almost always starts in the vapor space, not in the fuel itself.
Three scenarios cause most incidents:
- BLEVE (Boiling Liquid Expanding Vapor Explosion). When an external fire heats a tank, the liquid inside boils and pressure builds. If the vessel ruptures, the sudden release of vapor and burning liquid creates a fireball. This is the most feared tank failure mode, and it is driven by heat reaching the tank, not by the fuel spontaneously igniting.
- Diurnal vapor “breathing.” Daytime heat makes the tank expand and push vapor out. At night, the tank cools and draws air back in. Over weeks, this cycling can create a fuel-air mixture inside the vapor space that is ready to ignite.
- Static discharge or external ignition. Fuel moving through pipes and filters generates static charge. A poorly grounded tank, or an ignition source introduced during a manual top-up or inspection, can set off the vapor mixture.
If you handle gasoline, jet fuel, or other low-flashpoint fuels, treat vapor-space ignition as a real, present risk. Diesel is less volatile, but it can still create flammable vapor when heated, and its tanks are frequently exposed to external fires or impact. Research on diesel tanks exposed to fire impingement shows that heat and pressure can rise quickly enough to threaten the vessel. A tank that contains an ignition rather than allowing it to escalate is protection for every fuel type.
How Barrier Technology Prevents Explosions
Barrier fuel storage tanks work by removing the space where an explosion can develop. Inside the tank sits a conductive mesh or matrix, often an aluminum-alloy honeycomb or a spiral-wound alloy product such as HAN Barrier, that fills nearly the entire vapor volume.
Because the filler is mostly open space, it sacrifices very little storage capacity. Manufacturers typically report void ratios above 98 percent, which means the fuel you store displaces almost none of the filler’s volume. Put simply, you keep almost all of your tank capacity while removing most of the explosive headspace.
When an ignition source does appear, the barrier works through three mechanisms:
- Thermal sink. The metal matrix absorbs and spreads heat away from a flame front, cooling the vapor below its ignition point faster than the flame can propagate.
- Flame quenching. The narrow cells of the honeycomb or matrix subdivide any flame into small pockets that lose heat to the surrounding metal and extinguish themselves.
- Pressure and wave dampening. If pressure does rise, the matrix breaks up and slows the shock wave, so a deflagration cannot build into a destructive blast.
A note on the numbers: some suppliers advertise “99.9 percent suppression” or “100 percent BLEVE prevention.” Treat those as manufacturer claims, not independently certified guarantees. Barrier technology is a proven, code-recognized layer of defense that sharply reduces risk. It does not remove the need for correct installation, grounding, venting, and inspection. Any vendor who tells you otherwise is overselling.
For a deeper look at the material science, read our guide to HAN Barrier explosion-proof technology.

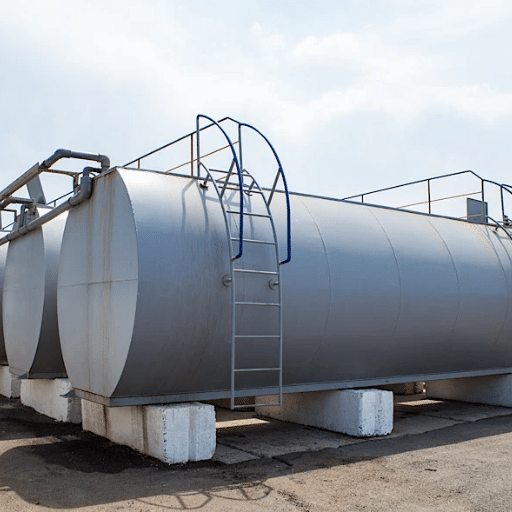

Barrier Tanks vs. Double-Wall Tanks: Two Different Safety Jobs
Buyers often compare explosion-proof tanks against double-wall tanks as if they were alternatives. They are not. The two systems protect against different failures.
| Comparison | Barrier (Explosion-Suppression) Tank | Double-Wall (SF) Tank |
|---|---|---|
| Primary job | Stop vapor-space ignition from becoming an explosion | Contain a leak before it reaches the environment |
| Hazard managed | Explosion, BLEVE, flash fire | Spills, corrosion leaks, groundwater contamination |
| How it works | Conductive filler occupies the vapor space | Second shell or interstice catches escaping fuel |
| Typical code driver | Risk assessments for high-hazard or setback-constrained sites | Environmental and storage regulations requiring secondary containment |
| Can combine? | Yes | Yes |
A common combination is a double-wall tank whose interstice is also filled or engineered with barrier material. That single asset gives the owner documented leak containment and explosion suppression, which is valuable in dense urban areas and near waterways.
If your decision is really about single-wall versus double-wall containment, see our double-wall tank guide first, then decide whether barrier technology should be added on top.
Not sure which your project needs? Send our engineering team your site details and get a recommendation based on your fuel, local codes, and setback situation.
Where Explosion-Proof Fuel Storage Tanks Deliver the Most Value
Barrier tanks cost more than plain single-wall tanks, so it pays to know where the premium is justified. In practice, four site profiles drive most demand.
1. Dense urban and constrained sites. Fire codes and local authorities use setback distances to protect neighboring buildings from a tank fire or explosion. Barrier suppression can change the risk picture enough to win approval closer to a property line, which matters when land is expensive and tight.
Consider a fuel retailer in a Middle Eastern city who wanted aboveground diesel storage on a plot that left almost no clearance to the boundary fence. By switching to a barrier tank and documenting the suppression design for the authority, the project gained sign-off that a standard tank would not have received.
2. Mining and tunneling operations. Underground fuel storage is regulated tightly because ventilation is limited and evacuation is hard. Barrier tanks give mine operators a defensible risk-reduction story, and the same applies to surface refueling points near blasting or high-traffic zones.
3. Defense, disaster relief, and remote operations. When fuel must sit close to people, vehicles, or temporary infrastructure, reducing explosion risk matters more than storage cost. Containerized and skid-mounted units often use barrier tanks as their core storage vessel so the whole module can be positioned near operations.
4. Fleet yards and generator backup. A barrier diesel tank beside a generator building, data center, or vehicle depot shortens the distance fuel can sit from critical assets. Because diesel vapors can still ignite under the right conditions, treating it as an explosion risk is not excessive when the asset value is high.
In every case, the value of the tank depends on how your regulator and risk engineer treat the explosion hazard. Involve them early, before you buy.
Standards and Certifications for Explosion-Proof Fuel Storage Tanks
Compliance language for tanks splits into three layers, and buyers frequently mix them up.
Vessel structure standards govern the tank shell itself. For aboveground tanks, these include UL 142; for underground tanks, UL 58 and UL 1746. Fire-resistance ratings such as UL 2085 apply to protected tanks built to survive external fire. Pressure vessels may follow the ASME Boiler and Pressure Vessel Code. Across North America, NFPA 30 sets the spacing, venting, and protection rules for flammable and combustible liquid storage.
Appurtenance certifications apply to the components bolted to the tank: an ATEX or IECEx certified Ex d pump, an intrinsically safe tank gauge, a flame arrester. The tank can be “standard” while the electrical equipment around it must be hazardous-area rated. The zone classification of your site determines which rating you need.
Export and regional rules matter when you import. A tank built for a project in the Gulf or Africa might need to satisfy a different framework than one built for the US market, and documentation expectations vary. Our ATEX vs IECEx vs UL certification guide explains the differences.
| Layer | Example standards | What it governs |
|---|---|---|
| Vessel structure | UL 142, UL 58, UL 1746, UL 2085, ASME VIII, NFPA 30 | Shell integrity, fire resistance, spacing, secondary containment |
| Appurtenances | ATEX 2014/34/EU, IECEx, EN ISO 16852, API 2000 | Pumps, gauges, flame arresters, venting devices |
| Export / regional | GB 50156 (China), local code equivalents | Installation and import compliance in destination market |
Two venting details are worth flagging because they trip up specifiers:
- Flame arresters and pressure-vacuum vents are not interchangeable. Tests carried out to EN ISO 16852 show that a conservation vent alone does not reliably stop flame from traveling back into a tank. If your liquid class requires a flame arrester, specify one that is type-approved to the standard, not a vent you assume will do double duty.
- Whether an arrester is mandatory on a protected tank depends on the stored liquid’s class and your local fire code, not just on the tank’s UL 2085 listing. Check the classification of your fuel against the applicable code edition.
Sizing, Configurations, and Cost Factors
An explosion-proof fuel storage tank is a configurable product, not a one-size-fits-all item. These are the decisions your quote will hinge on.
Sizing method. Start from your consumption, not from the biggest tank you can afford. Calculate your daily draw, decide how many days of autonomy you need, and add a safety margin for delivery windows. A common starting point for a generator or small depot is 8 to 12 hours of reserve at full load, but continuous-supply operations plan in days or weeks. For a full method, work from your actual consumption data rather than a rule of thumb.
Capacity and configuration. Standard aboveground barrier tanks commonly range from around 5 m3 (about 1,300 gallons) up to 50 m3 (about 13,000 gallons). Smaller component tanks of a few hundred to a few thousand liters cover generator and day-tank duties. Configurations include horizontal or vertical orientation, single-wall or double-wall, and multi-compartment layouts if you store more than one fuel.
Material choices. Stainless steel (304 or 316) suits corrosive and coastal sites. Carbon steel with protective coating is the economical default for inland diesel. Composite shells are available where weight or corrosion is the deciding factor.
Price drivers. Expect the biggest cost drivers to be material grade, double-wall versus single-wall construction, the volume of barrier filler, and the hazardous-area accessories. Freight and import duties add another layer, especially for larger vessels. Buying factory-direct from a certified manufacturer removes one middleman and makes the documentation trail easier to control. Ask for a breakdown of the tank shell, the barrier fill, and the accessories as separate line items so you can compare quotes fairly.
Do not let price be the whole story. A cheaper tank that is undersized, misdocumented, or paired with the wrong venting will cost far more in the first year of operation than the premium you saved at purchase.
Safety Accessories You Should Not Specify Without
An explosion-proof fuel storage tank is one part of a safe system. These accessories are not optional extras on a serious installation:
- Flame arrester and pressure-vacuum vent on the tank vent line, matched to your fuel and sized per API 2000 breathing calculations.
- Static grounding interlock so the tank cannot be filled before it is properly grounded.
- Ex-rated submersible or transfer pump certified for your site’s zone classification.
- Intrinsically safe automatic tank gauge so you can read level without opening the tank or introducing ignition risk.
- Overfill prevention with alarm and, where required, automatic shutoff.
- Secondary containment or spill catchment at the fill point, and leak detection where the code or your insurer expects it.
Each of these has its own certification story, and the documentation matters as much as the hardware. A compliant file that shows the tank, the pump, and the gauge each certified for the right zone is what keeps an inspector, an insurer, and a future buyer comfortable.
Maintenance and Inspection Essentials
Barrier technology reduces risk, but it does not make the tank maintenance-free. Build these checks into your schedule:
- Annual integrity inspection. Look for shell damage, coating breakdown, and signs of corrosion, and confirm the tank is still correctly seated on its supports.
- Barrier and filler condition. If your tank allows access, verify the barrier fill has not shifted, compacted, or been damaged by past internal work. Replacement is simpler to do during planned downtime.
- Flame arrester cleaning and testing. Arresters clog with vapor residue and must be cleaned and re-tested on the manufacturer’s schedule.
- Grounding verification. Measure continuity at the tank, piping, and fill point. A broken ground defeats the static protection.
- Gauge calibration. Confirm the automatic tank gauge still reads accurately against a manual dip.
- Documentation. Keep a log for inspectors. A consistent record is the cheapest insurance you can buy.
If you need a detailed checklist, ask your tank supplier for the maintenance schedule that matches your exact configuration and fuel.
Explosion-Proof Fuel Storage Tanks: FAQ
Can a fuel tank really explode?
Yes, under the right conditions. The vapor space above a volatile fuel can form an ignitable mixture, and a static spark or external ignition can set it off. Barrier tanks are designed to stop that ignition from becoming an explosion.
Is a double-wall tank explosion-proof?
Not by itself. A double-wall tank provides leak containment. To add explosion suppression, you need barrier fill or a barrier-engineered vessel. The two protections are complementary, not interchangeable.
Do I need an explosion-proof fuel storage tank for diesel?
Often, but it depends on your site. Diesel is less volatile than gasoline, but heated diesel can still release flammable vapor. High-risk sites such as mines, dense urban locations, and sites near critical assets frequently justify a barrier tank even for diesel.
What standards apply to explosion-proof fuel storage tanks?
Vessel standards such as UL 142 or UL 58 govern the shell, NFPA 30 governs spacing and protection, and ATEX, IECEx, and EN ISO 16852 govern the pumps, gauges, and flame arresters attached to it. Export projects add destination-country rules.
How much capacity do I lose to the barrier material?
Very little. Manufacturers report void ratios above 98 percent, so the filler occupies a small fraction of the tank’s volume. Confirm the exact figure for the product you are quoted.
How long does the barrier last?
The metal filler is designed for the life of the tank, but it should be inspected after any internal work. Confirm the warranty and inspection guidance with your supplier.
Conclusion
An explosion-proof fuel storage tank is not a magic box. It is an engineered layer of defense that removes the space where an explosion can build, then stops an ignition from escalating if one occurs. Used correctly, it lets high-risk sites store fuel closer to where it is needed, with documentation a regulator can accept.
Before you buy, remember the essentials:
- Know whether your real need is explosion suppression, leak containment, or both.
- Understand that the vapor space, not the fuel, is the hazard.
- Verify that your venting, grounding, and accessories match the tank itself.
- Check the standards that apply to the vessel, its appurtenances, and your destination market.
- Treat supplier suppression claims as claims and design your safety case around verified, documented protection.
